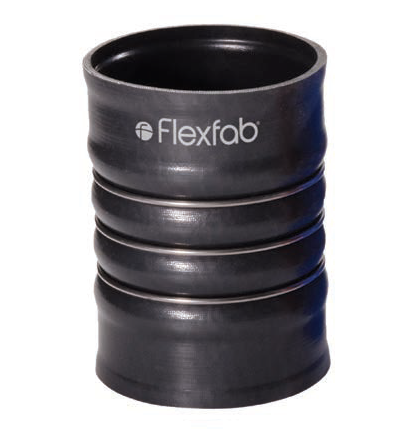

1070-0003 FlexFab 4-ply Heavy Wall Charge Air Connector (CAC) Duraguard Side - 4.00" ID - 4.23" OD - Gray - 6"

1070-0003 by FlexFab | 4-ply Heavy Wall Charge Air Connector (CAC) Duraguard Side | 4.00" ID | 4.23" OD | Gray | 6" Overall Length

Save $4.99 Save $4.99
$49.90
$49.90 - $49.90
$49.90
$44.91
$44.91 - $44.91
$44.91

Flexfab Industrial Hose - Heavy Wall Charge Air Connector (CAC) Hot Side or Cold Side & Duraguard™
Specifications for Variant SKU: 1070-0003 Flexfab
Shape (Orientation): Straight
Material(s): Silicone Coated Fabric, Stainless Steel
Construction:
  • Hot or Cold Side:
    • 4-Ply Heavy Duty Silicone Coated Meta-Aramid Fabric with Heavy Duty Stainless Steel Pressure Retention Rings
  • Duraguard™:
    • 4-Ply Heavy Duty Silicone Coated Meta-Aramid Fabric with Heavy Duty Stainless Steel Pressure Retention Rings
    • High temperature fluorocarbon elastomeric liner
Specifications:
  • Hot or Cold Side:
    • Temperature range is -65°F (-54°C) to +500°F (+260°C)
    • Wall thickness is .117"/.163"
  • Duraguard™:
    • Temperature range is -65°F (-54°C) to +500°F (+260°C)
    • Wall thickness is .117"/.163"
    • Designed to meet the EPA 2007 and EURO IV & V requirements for reduced emissions
Applications:
  • Hot or Cold Side:
    • Used on diesel engines to deliver pressurized intake air to the charge air intercooler and intake manifold
  • Duraguard™:
    • Used on diesel engines to deliver pressurized intake air to the charge air intercooler and intake manifold
    • Fluorocarbon lining eliminates closed crankcase vapors from permeating through the sidewall of the intercooler connection bellows at 500°F (260°C)
Part Number Inside Diameter Outside Diameter Overall Length Convolutes(Humps) Stainless SteelRings Max Operating Pressure - PSI WeightLBS Clamp
Hot Side
4076-0001 2.50" 2.73" 6.00" 2 3 80 PSI 0.5 lbs FLX2583-0250
4074-0001 3.00" 3.23" 6.00" 2 3 70 PSI 0.5 lbs FLX2588-0306
4073-0001 3.50" 3.73" 6.00" 2 3 70 PSI 0.5 lbs FLX2588-0356
4070-0001 4.00" 4.23" 6.00" 2 3 70 PSI 0.5 lbs FLX2588-0406
4075-0001 4.50" 4.73" 6.00" 2 3 60 PSI 0.5 lbs FLX2588-0456
Cold Side
4076-0002 2.50" 2.73" 6.00" 2 3 80 PSI 0.5 lbs FLX2583-0250
4074-0002 3.00" 3.23" 6.00" 2 3 70 PSI 0.5 lbs FLX2588-0306
4073-0002 3.50" 3.73" 6.00" 2 3 70 PSI 0.5 lbs FLX2588-0356
4070-0002 4.00" 4.23" 6.00" 2 3 70 PSI 0.5 lbs FLX2588-0406
4075-0002 4.50" 4.73" 6.00" 2 3 60 PSI 0.5 lbs FLX2588-0456
Duraguard™
1076-0003 2.50" 2.73" 6.00" 2 3 80 PSI 0.5 lbs FLX2583-0250
1074-0003 3.00" 3.23" 6.00" 2 3 70 PSI 0.5 lbs FLX2588-0306
1073-0003 3.50" 3.73" 6.00" 2 3 70 PSI 0.5 lbs FLX2588-0356
1070-0003 4.00" 4.23" 6.00" 2 3 70 PSI 0.5 lbs FLX2588-0406
1075-0003 4.50" 4.73" 6.00" 2 3 60 PSI 0.5 lbs FLX2588-0456
*Specifications for reference only. Specific test data available on request.
Flexfab

Flexfab

Flexfab produces a massive array of highly-engineered products in a wide variety of materials and designs for the aerospace, automotive, rail, and heavy-duty truck industries. Our proprietary processes of compounding, calendaring, extruding, molding, and bonding silicone rubber, organic rubber, and reinforcing materials makes our products world-class.
