1072X4 by Danfoss | Mini-Barb Fitting | Male Branch Tee | for 1/4" Tubing OD x 1/4" Tubing OD | 1/8" Male Pipe | Brass

1072X4 by Danfoss | Mini-Barb Fitting | Male Branch Tee | for 1/4" Tubing OD x 1/4" Tubing OD | 1/8" Male Pipe | Brass

$12.47 - $12.47

$12.47

$12.47 - $12.47

$12.47

Aeroquip® by Danfoss

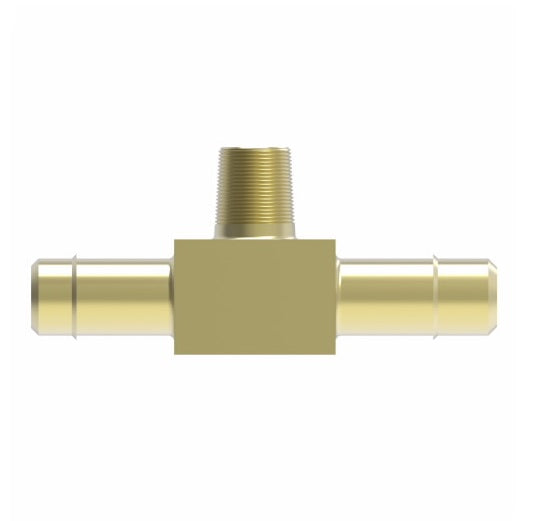

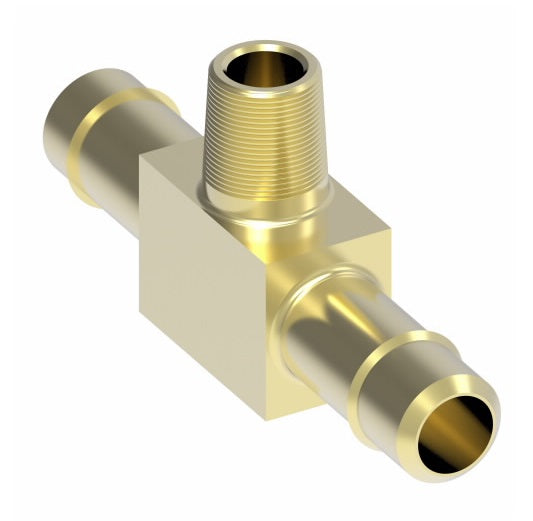

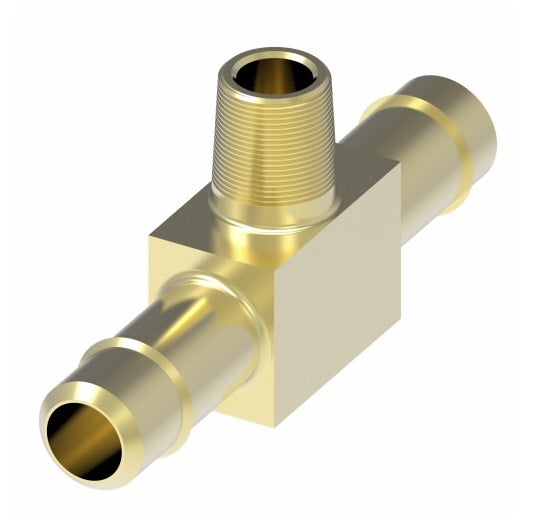

Mini-Barb Fitting - Male Branch Tee

Quantity

Specifications for Variant SKU: 1072X4 Danfoss
Shape (Orientation):	Tee
Ends Configuration:	1/4in Hose Barb, 1/4in Hose Barb, 1/8in Male NPT, Some Ends Match
Material(s):	Brass
Compatible with the following Series:	PT240 Series

Applications:
Temperature control circuits, test apparatus, lubricant, coolant lines, pneumatic circuits, vacuum and fluid systems.
Advantages:
Quick connecting - no tube preparation. Hand assembly. Low cost one-piece push-on design. Barbed lip provides safe, positive connection. Compact size permits use in extremely tight areas. Excellent vibration resistance.
Used With:
PT240 Polyethylene tubing.
Material:
CA360 Brass
Pressure:
Will withstand burst pressures of plastic tubing.
Temperature Range:
Depends on tubing used.
Conformance:
An exclusive item with Danfoss. User approvals only.


Tubing OD	D	E	J
5/32"	0.062"	0.113"	0.380"
*3/16"	0.078"	0.125"	0.500"
1/4"	0.127"	0.189"	0.500"
3/8"	0.196"	0.270"	0.500"
1/2"	0.312"	0.395"	0.630"

*No barb on 3/16" size.


Brass Part Number	Tubing O.D.	Male Pipe Thread	D1	M	N
1072X4	1/4"	1/8"	0.188"	0.720"	0.590"
1072X6X2	3/8"	1/8"	0.188"	0.720"	0.590"
1072X6	3/8"	1/4"	0.312"	0.780"	0.620"
