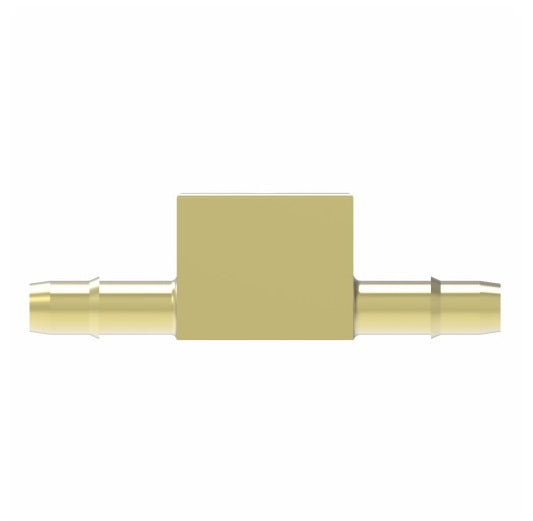

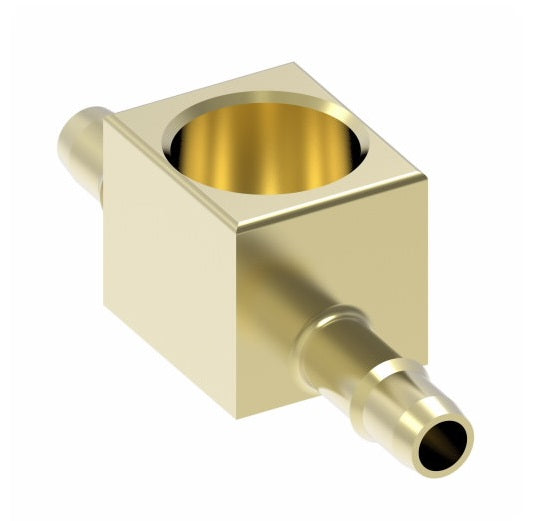

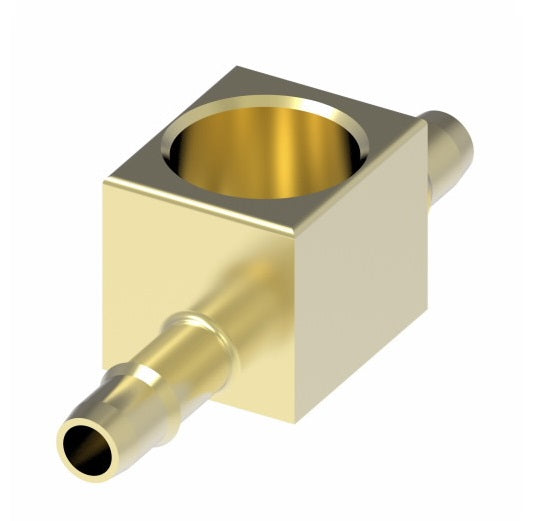

1077X4 by Danfoss | Mini-Barb Fitting | Female Branch Tee | for 1/4" Tubing OD x 1/4" Tubing OD | 1/8" Female Pipe | Brass

1077X4 by Danfoss | Mini-Barb Fitting | Female Branch Tee | for 1/4" Tubing OD x 1/4" Tubing OD | 1/8" Female Pipe | Brass

$5.43 - $5.43

$5.43

$5.43 - $5.43

$5.43

Aeroquip® by Danfoss
Mini-Barb Fitting - Female Branch Tee

Quantity

Specifications for Variant SKU: 1077X4 Danfoss
Shape (Orientation):	Tee
Ends Configuration:	1/4in Hose Barb, 1/4in Hose Barb, 1/8in Female NPT, Some Ends Match
Material(s):	Brass
Compatible with the following Series:	PT240 Series

Applications:
Temperature control circuits, test apparatus, lubricant, coolant lines, pneumatic circuits, vacuum and fluid systems.
Advantages:
Quick connecting - no tube preparation. Hand assembly. Low cost one-piece push-on design. Barbed lip provides safe, positive connection. Compact size permits use in extremely tight areas. Excellent vibration resistance.
Used With:
PT240 Polyethylene tubing.
Material:
CA360 Brass
Pressure:
Will withstand burst pressures of plastic tubing.
Temperature Range:
Depends on tubing used.
Conformance:
An exclusive item with Danfoss. User approvals only.


Tubing OD	D	E	J
5/32"	0.062"	0.113"	0.380"
*3/16"	0.078"	0.125"	0.500"
1/4"	0.127"	0.189"	0.500"
3/8"	0.196"	0.270"	0.500"
1/2"	0.312"	0.395"	0.630"

*No barb on 3/16" size.


Brass Part Number	Tubing O.D.	Female Pipe Thread	M	N
1077X4	1/4"	1/8"	0.77"	0.48"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
