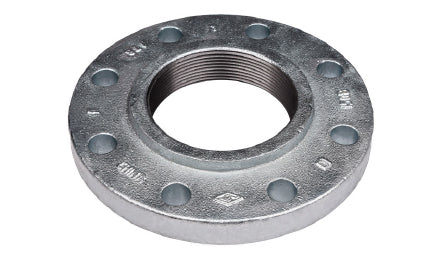

108037 Midland Reducing Threaded Companion Flange - 6" x 4" - Class 125 Pattern - Galvanized Ductile Iron

108037 by Midland | Reducing Threaded Companion Flange | 6" x 4" | Class 125 Pattern | Galvanized Ductile Iron

Save $17.91 Save $17.91
$161.18
$161.18 - $161.18
$161.18
$143.27
$143.27 - $143.27
$143.27

Midland Industries
Reducing Threaded Companion Flange - Class 125 Pattern - Galvanized Ductile Iron

Applications: Waterworks, Pumps, Irrigations

150 PSI

Inventory @ Manufacturers Warehouse: 10 Units
Specifications for Variant SKU: 108037 Midland
Shape (Orientation): Straight
Ends Configuration: 6in 125# Flange, 4in Female NPT
Material(s): Ductile Iron
Features:
  • Dimensions, faced and drilled in accordance with ASME B16.42/AWWA C110
  • Companion flange threads conform to: ASME B1.20.1
  • Hot-dipped Galvanized Conform to: ASTM A153
Part Number(Black) Description(D1 Flange) Size(Inch) A(Inch) B(Inch) C(Inch) D(Inch) Bolt Hole Size No. of Holes Weight(kg)
108033 1-1/2X9
(Pipe Size 1-1/2 x 4)		 3" x 2-1/2" 7.50" 6.00" 0.75" 1.19" φ0.75 4 4.2013
108035 3X9
(Pipe Size 3 x 4)		 4" x 2-1/2" 9.00" 7.50" 0.94" 1.31" φ0.75 8 6.3343
108036 2X10
(Pipe Size 2 x 5)		 4" x 3" 9.00" 7.50" 0.94" 1.31" φ0.75 8 6.081
108038 2-1/2X11
(Pipe Size 2-1/2 x 6)		 6" x 2" 11.00" 9.50" 1.00" 1.56" φ0.875 8 10.6349
108039 3X11
(Pipe Size 3 x 6)		 6" x 2-1/2 11.00" 9.50" 1.00" 1.56" φ0.875 8 10.5386
108037 5X11
(Pipe Size 5 x 6)		 6" x 4" 11.00" 9.50" 1.00" 1.56" φ0.875 8 9.4563
108040 5X13-1/2
(Pipe Size 5 x 8)		 8" x 4" 13.50" 11.75" 1.12" 1.75" φ0.875 8 17.1296
