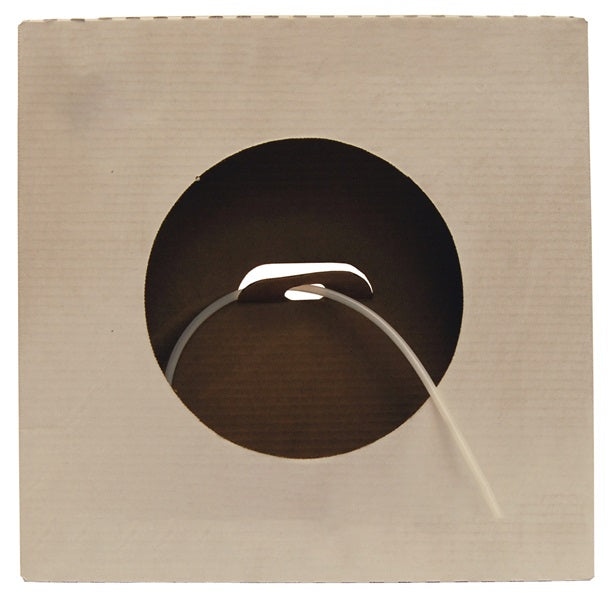

1091P0400 by Dixon Valve | Nylon 12 Tubing | 5/32" OD | 0.106" ID | 0.025" Wall Thickness | 50ft Length | Natural

Save $4.93

$44.37

$44.37 - $44.37

$44.37

$39.44

$39.44 - $39.44

$39.44

Dixon Valve
Nylon 12 Tubing

Ideal for many industrial applications.

Quantity

Specifications for Variant SKU: 1091P0400 Dixon
Brand:	Legris
Series:	Plastic Fittings and Tubing
Hose Color(s):	White/Off-White
Internal Diameter:	0.106in
Outer Diameter:	0.15625in
Tubing Construction:	Nylon

Features:
Chemical, humidity, and abrasion resistant. Semi rigid.
Specifications:
Temperature range: -65°F to 200°F (-54°C to 93°C).

Natural Nylon Part Number	Black Nylon Part Number	Blue Nylon Part Number	Size		Wall Thickness	Working Pressure PSI @ 75°F (24°C)	Length
Natural Nylon Part Number	Black Nylon Part Number	Blue Nylon Part Number	O.D.	I.D.	Wall Thickness	Working Pressure PSI @ 75°F (24°C)	Length
1091P5300	1091P5301	1091P5304	1/8"	0.093"	0.016"	250 PSI	50ft
1091P0400	1091P0401	1091P0404	5/32"	0.106"	0.025"	300 PSI	50ft
1091P5500	1091P5501	-	3/16"	0.138"	0.025"	250 PSI	50ft
1091P5600	1091P5601	1091P5604	1/4"	0.170"	0.040"	300 PSI	50ft
1091P0800	1091P0801	1091P0804	5/16"	0.233"	0.040"	250 PSI	50ft
1091P6000	1091P6001	1091P6004	3/8"	0.275"	0.050"	250 PSI	50ft
-	1091P6201	1091P6204	1/2"	0.375"	0.062"	250 PSI	50ft

1094P5300	1094P5301	1094P5304	1/8"	0.093"	0.016"	250 PSI	100ft
1094P0400	1094P0401	1094P0404	5/32"	0.106"	0.025"	300 PSI	100ft
1094P5500	1094P5501	-	3/16"	0.138"	0.025"	250 PSI	100ft
1094P5600	1094P5601	1094P5604	1/4"	0.170"	0.040"	300 PSI	100ft
1094P0800	1094P0801	1094P0804	5/16"	0.233"	0.040"	250 PSI	100ft
1094P6000	1094P6001	1094P6004	3/8"	0.275"	0.050"	250 PSI	100ft
1094P6200	1094P6201	1094P6204	1/2"	0.375"	0.062"	250 PSI	100ft

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
