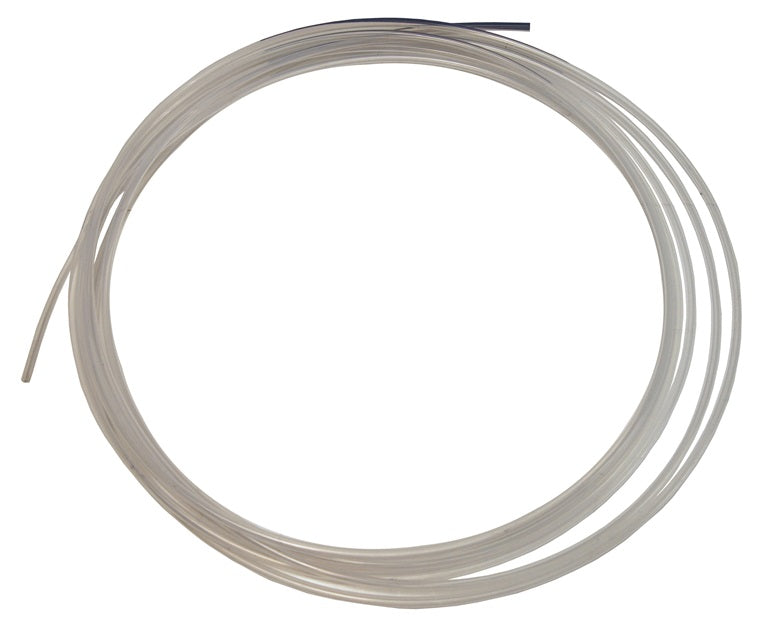

1092T5600 by Dixon Valve | Fluoropolymer FEP 140 Tubing | 1/4" OD | 0.170" ID | 0.031" Wall Thickness | Clear | 25ft Length

1092T5600 by Dixon Valve | Fluoropolymer FEP 140 Tubing | 1/4" OD | 0.170" ID | 0.031" Wall Thickness | Clear | 25ft Length

Save $20.74 Save $20.74
$186.63
$186.63 - $186.63
$186.63
$165.89
$165.89 - $165.89
$165.89

Dixon Valve
Polyurethane - 95 Durometer Tubing

Fluoropolymer tubing is of food quality and provides excellent resistance to aggressive and corrosive agents as well as high temperatures.
Specifications for Variant SKU: 1092T5600 Dixon
Brand: Legris
Series: Plastic Fittings and Tubing
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.188in
Outer Diameter: 0.25in
Tubing Construction: FEP
Material:
  • Clear Fluoropolymer
Specifications:
  • Maximum temperature: 300°F (149°C)
Approvals:
  • FDA compliant materials.
Clear Fluoropolymer
Part Number		 Size Wall Thickness Working Pressure
PSI @ 72°F (22°C)		 Length
O.D. I.D.
1092T5300 1/8" 0.062" 0.031" 500 PSI 25ft
1092T5600 1/4" 0.170" 0.031" 165 PSI 25ft
1092T6000 3/8" 0.300" 0.062" 249 PSI 25ft
1092T6200 1/2" 0.420" 0.062" 165 PSI 25ft
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
