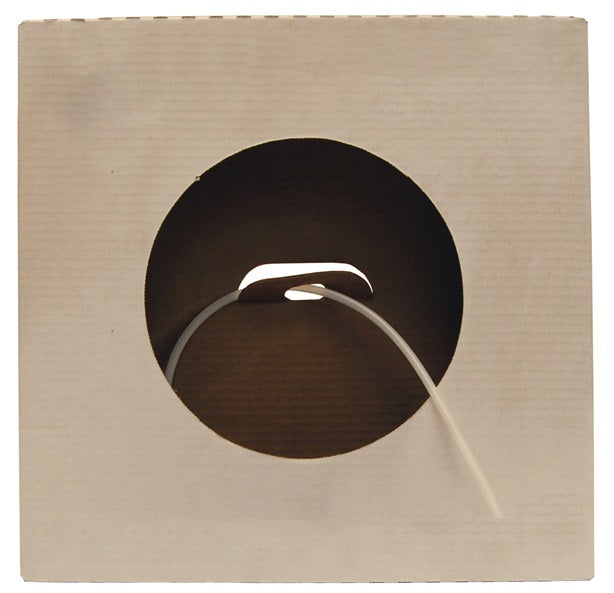

1094P5600 by Dixon Valve | Nylon 12 Tubing | 1/4" OD | 0.170" ID | 0.040" Wall Thickness | 100ft Length | Natural

1094P5600 by Dixon Valve | Nylon 12 Tubing | 1/4" OD | 0.170" ID | 0.040" Wall Thickness | 100ft Length | Natural

Save $14.13 Save $14.13
$127.16
$127.16 - $127.16
$127.16
$113.03
$113.03 - $113.03
$113.03

Dixon Valve
Nylon 12 Tubing

Ideal for many industrial applications.
Specifications for Variant SKU: 1094P5600 Dixon
Brand: Legris
Series: Plastic Fittings and Tubing
Hose Color(s): White/Off-White
Internal Diameter: 0.17in
Outer Diameter: 0.25in
Tubing Construction: Nylon
Features:
  • Chemical, humidity, and abrasion resistant.
  • Semi rigid.
Specifications:
  • Temperature range: -65°F to 200°F (-54°C to 93°C).
Natural Nylon
Part Number		 Black Nylon
Part Number		 Blue Nylon
Part Number		 Size Wall Thickness Working Pressure
PSI @ 75°F (24°C)		 Length
O.D. I.D.
1091P5300 1091P5301 1091P5304 1/8" 0.093" 0.016" 250 PSI 50ft
1091P0400 1091P0401 1091P0404 5/32" 0.106" 0.025" 300 PSI 50ft
1091P5500 1091P5501 - 3/16" 0.138" 0.025" 250 PSI 50ft
1091P5600 1091P5601 1091P5604 1/4" 0.170" 0.040" 300 PSI 50ft
1091P0800 1091P0801 1091P0804 5/16" 0.233" 0.040" 250 PSI 50ft
1091P6000 1091P6001 1091P6004 3/8" 0.275" 0.050" 250 PSI 50ft
- 1091P6201 1091P6204 1/2" 0.375" 0.062" 250 PSI 50ft

1094P5300 1094P5301 1094P5304 1/8" 0.093" 0.016" 250 PSI 100ft
1094P0400 1094P0401 1094P0404 5/32" 0.106" 0.025" 300 PSI 100ft
1094P5500 1094P5501 - 3/16" 0.138" 0.025" 250 PSI 100ft
1094P5600 1094P5601 1094P5604 1/4" 0.170" 0.040" 300 PSI 100ft
1094P0800 1094P0801 1094P0804 5/16" 0.233" 0.040" 250 PSI 100ft
1094P6000 1094P6001 1094P6004 3/8" 0.275" 0.050" 250 PSI 100ft
1094P6200 1094P6201 1094P6204 1/2" 0.375" 0.062" 250 PSI 100ft
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
