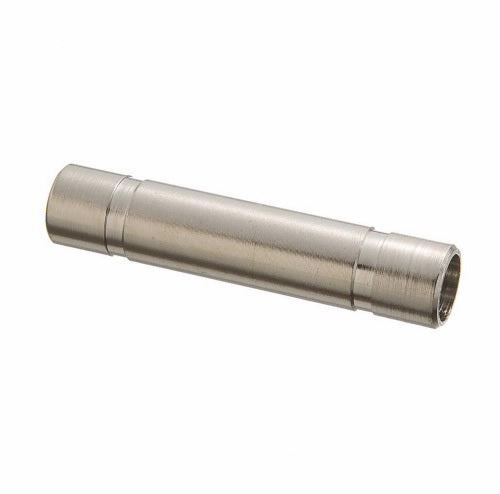

1105X10M by Danfoss | Metric Push to Connect Adapter | Double Union | 10mm Tube OD | Nickel Plated Brass

1105X10M by Danfoss | Metric Push to Connect Adapter | Double Union | 10mm Tube OD | Nickel Plated Brass

$7.41 - $7.41
$7.41
$7.41 - $7.41
$7.41

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Double Union
Specifications for Variant SKU: 1105X10M Danfoss
Shape (Orientation): Straight
Material(s): Nickel Plated Brass
Compatible with the following Series: MTP160 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		     M5x.8
BSPT 1/8 (2PT) 1/4 (4PT)   3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP)   3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
(mm)		 L
1105X4M 4mm 32.5mm
1105X6M 6mm 35.5mm
1105X8M 8mm 40.5mm
1105X10M 10mm 46.0mm
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
