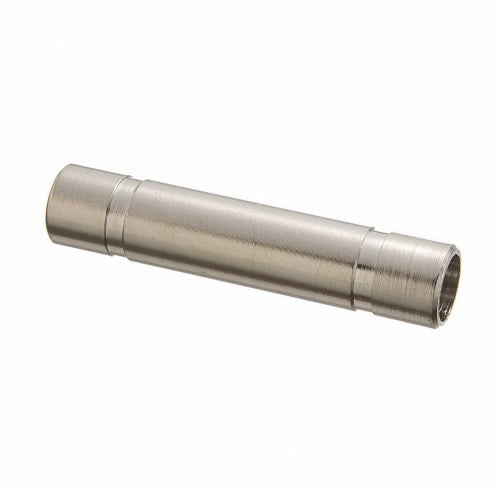

1105X8M by Danfoss | Metric Push to Connect Adapter | Double Union | 8mm Tube OD | Nickel Plated Brass

1105X8M by Danfoss | Metric Push to Connect Adapter | Double Union | 8mm Tube OD | Nickel Plated Brass

$6.21 - $6.21
$6.21
$6.21 - $6.21
$6.21

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Double Union
Specifications for Variant SKU: 1105X8M Danfoss
Shape (Orientation): Straight
Material(s): Nickel Plated Brass
Compatible with the following Series: MTP160 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		     M5x.8
BSPT 1/8 (2PT) 1/4 (4PT)   3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP)   3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
(mm)		 L
1105X4M 4mm 32.5mm
1105X6M 6mm 35.5mm
1105X8M 8mm 40.5mm
1105X10M 10mm 46.0mm
