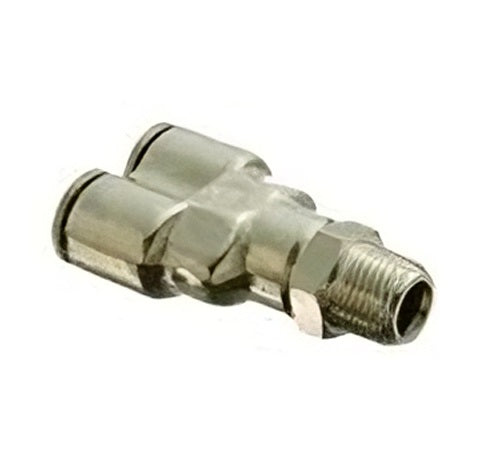

1108X2.5 by Danfoss | Push to Connect Adapter | Swivel Male Y | 1/8" Male Pipe x 5/32" Tube OD x 5/32" Tube OD | Nickel Plated Brass

1108X2.5 by Danfoss | Push to Connect Adapter | Swivel Male Y | 1/8" Male Pipe x 5/32" Tube OD x 5/32" Tube OD | Nickel Plated Brass

$23.91 - $23.91
$23.91
$23.91 - $23.91
$23.91

Aeroquip® by Danfoss
Push to Connect Adapter - Swivel Male Y
Male Pipe x Push to Connect End x Push to Connect End

Swivel for installation purposes only.
Specifications for Variant SKU: 1108X2.5 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/8in Male NPT, 5/32in Tube Compression, 5/32in Tube Compression, Some Ends Match
Material(s): Nickel Plated Brass
Compatible with the following Series: PT230 Series  |   TP160 Series  |   PT240 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
  • PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
  • Fittings rated at 29.5 inches of mercury vacuum.
Nickel Plated Brass
Part Number 		Tube O.D. Male Pipe Thread F M L
1108X2A 1/8" 10-32* 0.83" 0.39" 1.04"
1108X2 1/8" 1/8" 0.83" 0.39" 1.54"
1108X2.5 5/32" 1/8" 0.83" 0.39" 1.54"
1108X4 1/4" 1/8" 0.96" 0.49" 1.67"

*UNF Thread. Seals with nylon washer (included).
