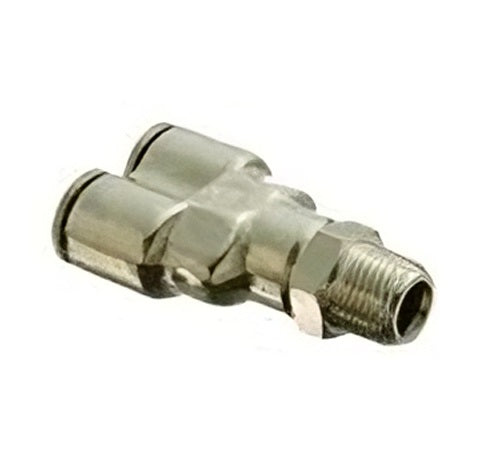

1108X2A by Danfoss | Push to Connect Adapter | Swivel Male Y | 10-32 Male UNF x 1/8" Tube OD x 1/8" Tube OD | Nickel Plated Brass

Name: 1108X2A by Danfoss | Push to Connect Adapter | Swivel Male Y | 10-32 Male UNF x 1/8" Tube OD x 1/8" Tube OD | Nickel Plated Brass
Brand: Danfoss/Eaton
SKU: 1108X2A Danfoss
Price: 14.92 USD
Availability: InStock

$14.92 - $14.92

$14.92

$14.92 - $14.92

$14.92

Aeroquip® by Danfoss
Push to Connect Adapter - Swivel Male Y
Male Pipe x Push to Connect End x Push to Connect End

Swivel for installation purposes only.

Specifications for Variant SKU: 1108X2A Danfoss
Shape (Orientation):	No Orientation
Material(s):	Nickel Plated Brass
Compatible with the following Series:	PT230 Series \| TP160 Series \| PT240 Series

Applications:
Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
Ease of assembly. No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
Brass, Nickel Plated O-Ring: Buna-N
Pressure:
Up to 250 psi depending on tube size.
Temperature Range:
When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
Fittings rated at 29.5 inches of mercury vacuum.


Nickel Plated Brass Part Number	Tube O.D.	Male Pipe Thread	F	M	L
1108X2A	1/8"	10-32*	0.83"	0.39"	1.04"
1108X2	1/8"	1/8"	0.83"	0.39"	1.54"
1108X2.5	5/32"	1/8"	0.83"	0.39"	1.54"
1108X4	1/4"	1/8"	0.96"	0.49"	1.67"

*UNF Thread. Seals with nylon washer (included).
