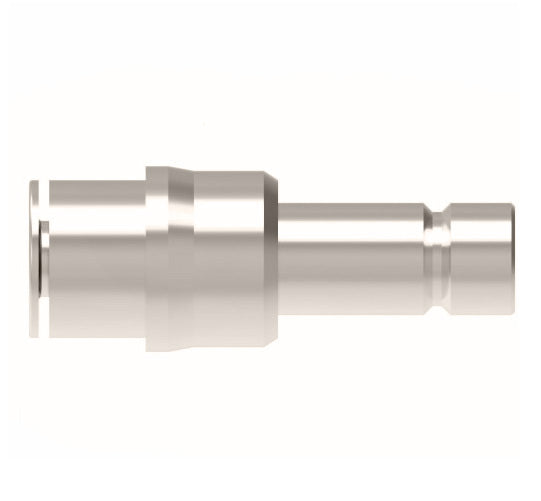

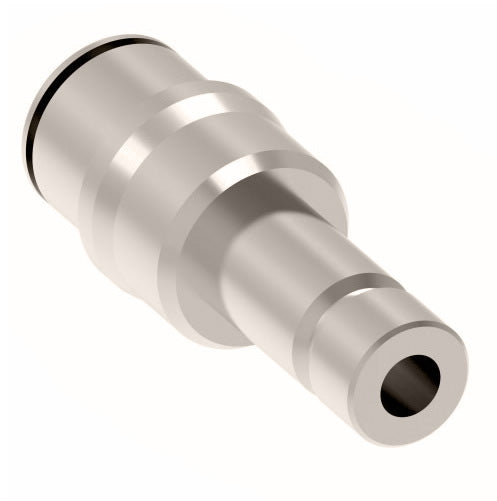

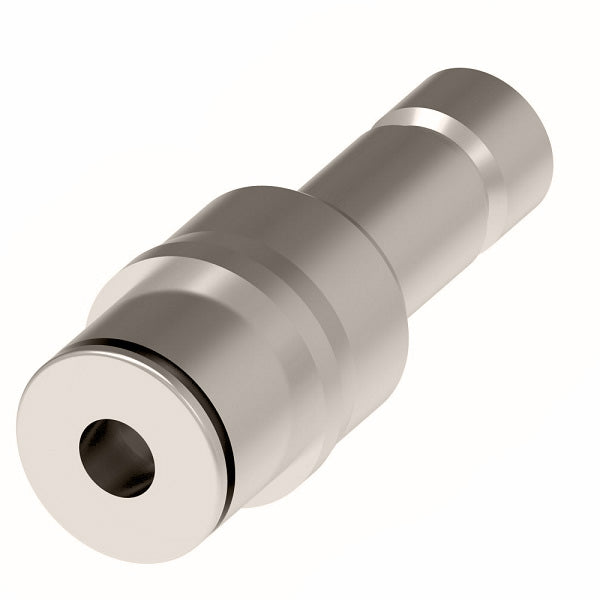

1109X2X4 by Danfoss | Push to Connect Adapter | Reducer | 1/8" Tube OD x 1/4" Tube Insert | Nickel Plated Brass
1109X2X4 by Danfoss | Push to Connect Adapter | Reducer | 1/8" Tube OD x 1/4" Tube Insert | Nickel Plated Brass
1109X2X4 by Danfoss | Push to Connect Adapter | Reducer | 1/8" Tube OD x 1/4" Tube Insert | Nickel Plated Brass
1109X2X4 by Danfoss | Push to Connect Adapter | Reducer | 1/8" Tube OD x 1/4" Tube Insert | Nickel Plated Brass

1109X2X4 by Danfoss | Push to Connect Adapter | Reducer | 1/8" Tube OD x 1/4" Tube Insert | Nickel Plated Brass

$8.51 - $8.51
$8.51
$8.51 - $8.51
$8.51

Aeroquip® by Danfoss
Push to Connect Adapter - Reducer
Push to Connect End x Tube Insert
Straight
Specifications for Variant SKU: 1109X2X4 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/8in Tube Compression, 1/4in Tube Stem
Material(s): Nickel Plated Brass
Compatible with the following Series: PT230 Series  |   TP160 Series  |   PT240 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
  • PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
  • Fittings rated at 29.5 inches of mercury vacuum.
Nickel Plated Brass
Part Number 		Tube O.D.
A		 Tube O.D.
B		 C F L T
1109X2X4 1/8" 1/4" 0.61" 0.35" 1.16" 0.71"
109X2.5X4 5/32" 1/4" 0.61" 0.35" 1.16" 0.71"
1109X4X6 1/4" 3/8" 0.82" 0.50" 1.46" 0.91"
1109X4X8 1/4" 1/2" 0.68" 0.50" 1.32" 0.91"
1109X6X8 3/8" 1/2" 0.79" 0.65" 1.58" 0.94"
