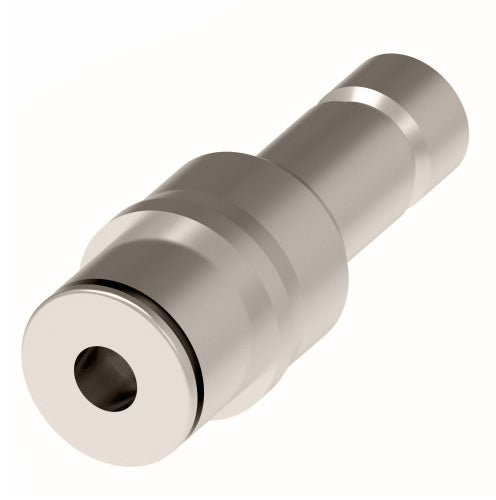

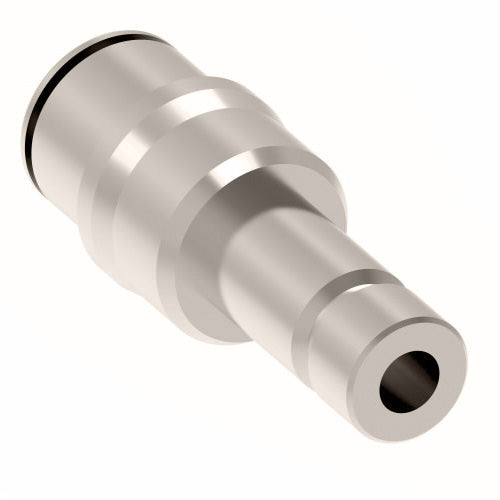

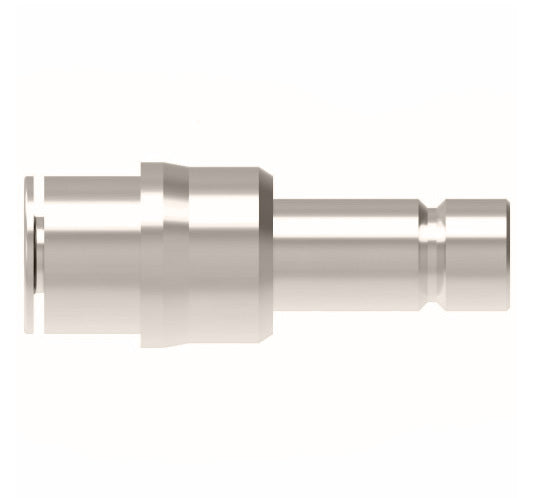

1109X6MX10M by Danfoss | Metric Push to Connect Adapter | Reducer | 6mm Tube OD x 10mm Tube OD | Nickel Plated Brass
1109X6MX10M by Danfoss | Metric Push to Connect Adapter | Reducer | 6mm Tube OD x 10mm Tube OD | Nickel Plated Brass
1109X6MX10M by Danfoss | Metric Push to Connect Adapter | Reducer | 6mm Tube OD x 10mm Tube OD | Nickel Plated Brass
1109X6MX10M by Danfoss | Metric Push to Connect Adapter | Reducer | 6mm Tube OD x 10mm Tube OD | Nickel Plated Brass

1109X6MX10M by Danfoss | Metric Push to Connect Adapter | Reducer | 6mm Tube OD x 10mm Tube OD | Nickel Plated Brass

$10.43 - $10.43
$10.43
$10.43 - $10.43
$10.43

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Reducer
Specifications for Variant SKU: 1109X6MX10M Danfoss
Shape (Orientation): Straight
Ends Configuration: 6mm Push-to-Connect, 10mm Push-to-Connect
Material(s): Nickel Plated Brass
Compatible with the following Series: MTP160 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		     M5x.8
BSPT 1/8 (2PT) 1/4 (4PT)   3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP)   3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
A
(mm)		 Tube OD
B
(mm)		 C F L T
1109X4MX6M 4mm 6mm 15.5mm 9mm 29.5mm 18.0mm
1109X6MX8M 6mm 8mm 18.0mm 13mm 34.0mm 20.5mm
1109X6MX10M 6mm 10mm 20.5mm 13mm 36.5mm 23.0mm
1109X8MX10M 8mm 10mm 20.5mm 14mm 39.0mm 23.0mm
1109X8MX12M 8mm 12mm 21.5mm 14mm 39.0mm 24.0mm
