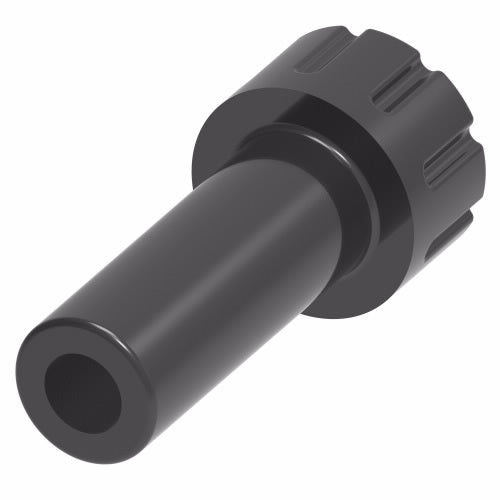

Name: 1129X4MRP by Danfoss | Metric Push to Connect Adapter | Plug | 4mm Tube OD | Plastic
Brand: Danfoss/Eaton
SKU: 1129X4MRP Danfoss
Price: 2.62 USD
Availability: InStock

$2.62 - $2.62

$2.62

$2.62 - $2.62

$2.62

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Plug

Specifications for Variant SKU: 1129X4MRP Danfoss
Shape (Orientation):	Straight
Material(s):	Plastic
Compatible with the following Series:	MTP160 Series

Applications:
Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
Ease of assembly. No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
MTP160 nylon tubing.
Material:
Brass, Nickel Plated O-Ring: Buna-N
Pressure:
Up to 250 psi depending on tube size.
Temperature Range:
-40°F to 200°F (-40°C to 93°C).

Nominal Size	2	4	5MM	6	8
Thread
MM (Metric Screw Thread)			M5x.8
BSPT	1/8 (2PT)	1/4 (4PT)		3/8 (6PT)	1/2 (8PT)
BSPP	1/8 (2PP)	1/4 (4PP)		3/8 (6PP)	1/2


Plastic Part Number	Tube OD (mm)	L	P	T
1129X4MRP	4mm	29.0mm	8mm	20.0mm
1129X5MRP	5mm	29.5mm	8mm	20.5mm
1129X6MRP	6mm	31.5mm	8mm	22.5mm
1129X8MRP	8mm	34.5mm	12mm	24.5mm
1129X10MRP	10mm	37.0mm	12mm	27.0mm
1129X12MRP	12mm	40.5mm	16mm	28.5mm
