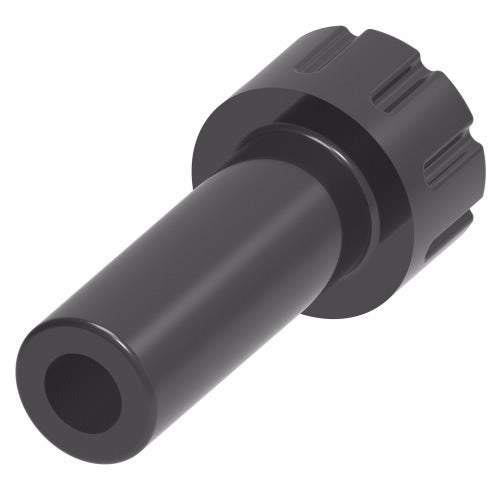

1129X5MRP by Danfoss | Metric Push to Connect Adapter | Plug | 5mm Tube OD | Plastic

1129X5MRP by Danfoss | Metric Push to Connect Adapter | Plug | 5mm Tube OD | Plastic

Name: 1129X5MRP by Danfoss | Metric Push to Connect Adapter | Plug | 5mm Tube OD | Plastic
Brand: Danfoss/Eaton
SKU: 1129X5MRP Danfoss
Price: 3.96 USD
Availability: InStock

$3.96 - $3.96

$3.96

$3.96 - $3.96

$3.96

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Plug

Specifications for Variant SKU: 1129X5MRP Danfoss
Shape (Orientation):	Straight
Material(s):	Plastic
Compatible with the following Series:	MTP160 Series

Applications:
Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
Ease of assembly. No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
MTP160 nylon tubing.
Material:
Brass, Nickel Plated O-Ring: Buna-N
Pressure:
Up to 250 psi depending on tube size.
Temperature Range:
-40°F to 200°F (-40°C to 93°C).

Nominal Size	2	4	5MM	6	8
Thread
MM (Metric Screw Thread)			M5x.8
BSPT	1/8 (2PT)	1/4 (4PT)		3/8 (6PT)	1/2 (8PT)
BSPP	1/8 (2PP)	1/4 (4PP)		3/8 (6PP)	1/2


Plastic Part Number	Tube OD (mm)	L	P	T
1129X4MRP	4mm	29.0mm	8mm	20.0mm
1129X5MRP	5mm	29.5mm	8mm	20.5mm
1129X6MRP	6mm	31.5mm	8mm	22.5mm
1129X8MRP	8mm	34.5mm	12mm	24.5mm
1129X10MRP	10mm	37.0mm	12mm	27.0mm
1129X12MRP	12mm	40.5mm	16mm	28.5mm

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
