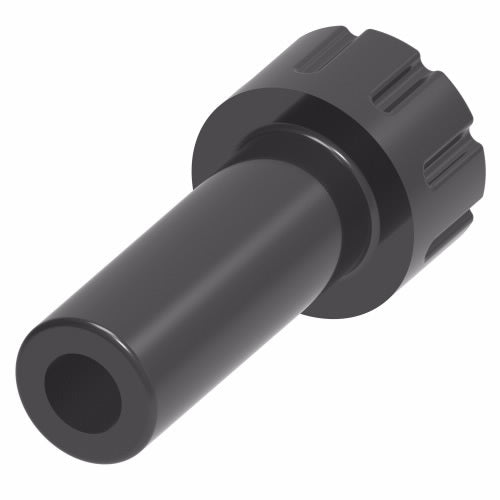

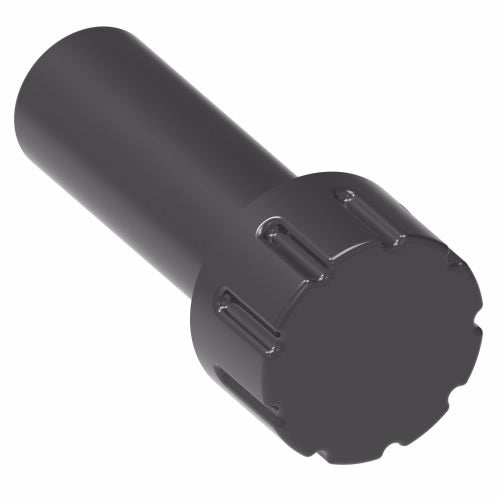

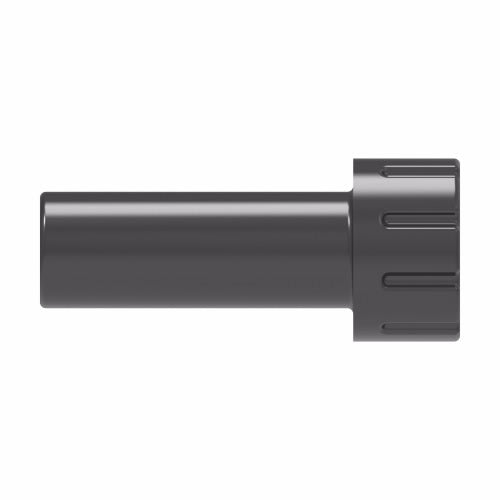

1129X8MRP by Danfoss | Metric Push to Connect Adapter | Plug | 8mm Tube OD | Plastic
1129X8MRP by Danfoss | Metric Push to Connect Adapter | Plug | 8mm Tube OD | Plastic
1129X8MRP by Danfoss | Metric Push to Connect Adapter | Plug | 8mm Tube OD | Plastic
1129X8MRP by Danfoss | Metric Push to Connect Adapter | Plug | 8mm Tube OD | Plastic

1129X8MRP by Danfoss | Metric Push to Connect Adapter | Plug | 8mm Tube OD | Plastic

$3.38 - $3.38
$3.38
$3.38 - $3.38
$3.38

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Plug
Specifications for Variant SKU: 1129X8MRP Danfoss
Shape (Orientation): Straight
Material(s): Plastic
Compatible with the following Series: MTP160 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		     M5x.8
BSPT 1/8 (2PT) 1/4 (4PT)   3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP)   3/8 (6PP) 1/2
Plastic
Part Number 		Tube OD
(mm)		 L P T
1129X4MRP 4mm 29.0mm 8mm 20.0mm
1129X5MRP 5mm 29.5mm 8mm 20.5mm
1129X6MRP 6mm 31.5mm 8mm 22.5mm
1129X8MRP 8mm 34.5mm 12mm 24.5mm
1129X10MRP 10mm 37.0mm 12mm 27.0mm
1129X12MRP 12mm 40.5mm 16mm 28.5mm
