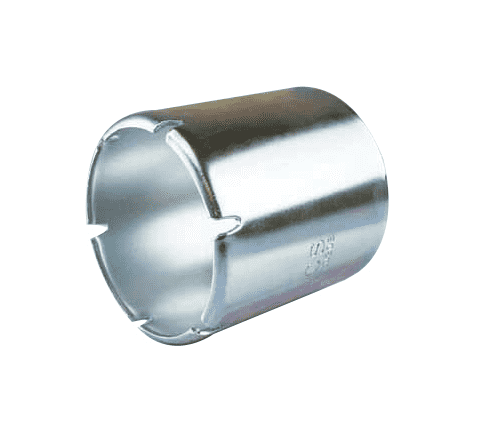

115F15P by Jason Industrial | Cam and Groove Crimp Ferrule | 1-1/2" Hose Size | 1-15/16" Ferrule ID | Plated Steel

115F15P by Jason Industrial | Cam and Groove Crimp Ferrule | 1-1/2" Hose Size | 1-15/16" Ferrule ID | Plated Steel

Save $0.13 Save $0.13
$12.58
$12.58 - $12.58
$12.58
$12.45
$12.45 - $12.45
$12.45

Jason Industrial Inc. Couplings & Accessories - Crimp Couplings / Ferrules / Sleeves - Cam & Groove - Crimp Ferrules - Plated Steel
Specifications for Variant SKU: 115F15P Jason
Shape (Orientation): No Orientation
Material(s): Plated Steel
Applications:
Other Components:
Safety Warnings:
  • Warning - Do not use in steam applications
  • Because the hose/coupling interface is critical to the hose assembly performance, always follow the specific instructions of the hose and coupling manufacturers regarding the match of hose/fittings and assembly procedures. Trained personnel using proper tools and procedures should make the hose assemblies. Failure to follow the manufacturers' instructions or failure to use trained personnel might be dangerous and could result in damage to property and serious bodily injury.
  • Please do not mix Jason Industrial couplings with other products.
Part Number Hose Size (ID) Ferrule ID Min. OD Max OD Ferrule Wall Thickness
in. mm in. mm in. mm
115F15P 1-1/2" 1-15/16" 1.796" 45.62mm 1.906" 48.41mm 0.06" 1.52mm
200F15P 1-1/2" 2" 1.922" 48.82mm 1.968" 49.99mm 0.06" 1.52mm
201F15P 1-1/2" 2-1/16" 1.984" 50.39mm 2.020" 51.31mm 0.06" 1.52mm
202F15P 1-1/2" 2-2/16" 2.046" 51.97mm 2.094" 53.19mm 0.06" 1.52mm
203F15P 1-1/2" 2-3/16" 2.110" 53.59mm 2.156" 54.76mm 0.06" 1.52mm
204F15P 1-1/2" 2-4/16" 2.172" 55.17mm 2.218" 56.34mm 0.06" 1.52mm
205F15P 1-1/2" 2-5/16" 2.224" 56.49mm 2.282" 57.96mm 0.06" 1.52mm
206F15P 1-1/2" 2-6/16" 2.296" 58.32mm 2.344" 59.54mm 0.06" 1.52mm
208F20P 2" 2-8/16" 2.360" 59.94mm 2.468" 62.69mm 0.06" 1.52mm
209F20P 2" 2-9/16" 2.484" 63.09mm 2.532" 64.31mm 0.06" 1.52mm
210F20P 2" 2-10/16" 2.546" 64.67mm 2.594" 65.89mm 0.06" 1.52mm
211F20P 2" 2-11/16" 2.610" 66.29mm 2.656" 67.46mm 0.06" 1.52mm
212F20P 2" 2-12/16" 2.672" 67.87mm 2.718" 69.04mm 0.06" 1.52mm
213F20P 2" 2-13/16" 2.734" 69.44mm 2.782" 70.66mm 0.06" 1.52mm
214F20P 2" 2-14/16" 2.796" 71.02mm 2.844" 72.24mm 0.06" 1.52mm
215F20P 2" 2-15/16" 2.860" 72.64mm 2.906" 73.81mm 0.06" 1.52mm
302F25P 2-1/2" 3-2/16" 2.984" 75.79mm 3.094" 78.59mm 0.06" 1.52mm
303F25P 2-1/2" 3-3/16" 3.110" 78.99mm 3.156" 80.16mm 0.06" 1.52mm
304F25P 2-1/2" 3-4/16" 3.172" 80.57mm 3.220" 81.79mm 0.06" 1.52mm
305F25P 2-1/2" 3-5/16" 3.234" 82.14mm 3.282" 83.36mm 0.06" 1.52mm
307F25P 2-1/2" 3-7/16" 3.300" 83.82mm 3.406" 86.51mm 0.06" 1.52mm
308F30P 3" 3-8/16" 3.360" 85.34mm 3.406" 86.51mm 0.09" 2.29mm
309F30P 3" 3-9/16" 3.422" 86.92mm 3.532" 89.71mm 0.09" 2.29mm
310F30P 3" 3-10/16" 3.546" 90.07mm 3.594" 91.29mm 0.09" 2.29mm
311F30P 3" 3-11/16" 3.610" 91.69mm 3.656" 92.86mm 0.09" 2.29mm
312F30P 3" 3-12/16" 3.672" 93.27mm 3.718" 94.44mm 0.09" 2.29mm
313F30P 3" 3-13/16" 3.734" 94.84mm 3.782" 96.06mm 0.09" 2.29mm
314F30P 3" 3-14/16" 3.796" 96.42mm 3.844" 97.64mm 0.09" 2.29mm
315F30P 3" 3-15/16" 3.860" 98.04mm 3.906" 99.21mm 0.09" 2.29mm
409F40P 4" 4-9/16" 3.922" 99.62mm 3.968" 100.79mm 0.09" 2.29mm
410F40P 4" 4-10/16" 4.422" 112.32mm 4.532" 115.11mm 0.09" 2.29mm
411F40P 4" 4-11/16" 4.546" 115.47mm 4.594" 116.69mm 0.09" 2.29mm
412F40P 4" 4-12/16" 4.610" 117.09mm 4.656" 118.26mm 0.09" 2.29mm
413F40P 4" 4-13/16" 4.672" 118.67mm 4.718" 119.84mm 0.09" 2.29mm
414F40P 4" 4-14/16" 4.734" 120.24mm 4.782" 121.46mm 0.09" 2.29mm
415F40P 4" 4-15/16" 4.796" 121.82mm 4.844" 123.04mm 0.09" 2.29mm
500F40P 4" 5" 4.860" 123.44mm 4.906" 124.61mm 0.09" 2.29mm
501F40P 4" 5-1/16" 4.922" 125.02mm 4.968" 126.19mm 0.09" 2.29mm
610F60P 6" 6-10/16" 6.422" 163.12mm 6.594" 167.49mm 0.12" 3.05mm
614F60P 6" 6-14/16" 6.610" 167.89mm 6.844" 173.84mm 0.12" 3.05mm
702F60P 6" 7-2/16" 6.860" 174.24mm 7.094" 180.19mm 0.12" 3.05mm
706F60P 6" 7-6/16" 7.110" 180.59mm 7.344" 186.54mm 0.12" 3.05mm
Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
