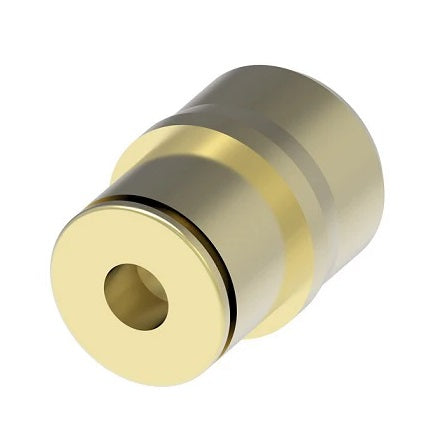

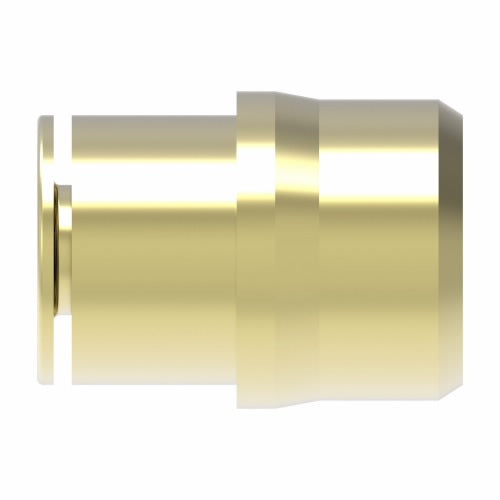

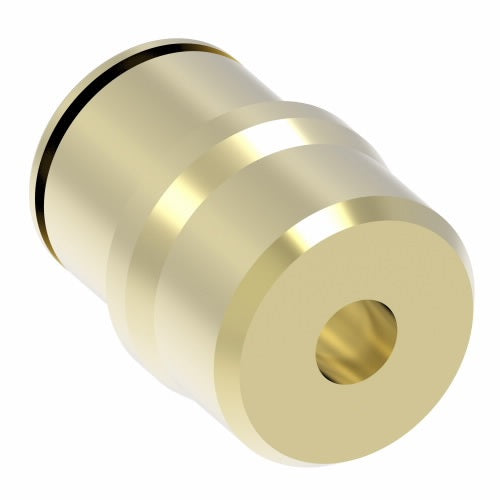

Name: 1161X2 by Danfoss | Push to Connect Adapter | Cartridge | 1/8" Tube OD | Brass
Brand: Danfoss/Eaton
SKU: 1161X2 Danfoss
Price: 4.86 USD
Availability: InStock

$4.86 - $4.86

$4.86

$4.86 - $4.86

$4.86

Aeroquip® by Danfoss
Push to Connect Adapter - Cartridge

Cartridge body is not Nickel-plated.

Specifications for Variant SKU: 1161X2 Danfoss
Shape (Orientation):	No Orientation
Material(s):	Brass
Compatible with the following Series:	PT230 Series \| TP160 Series \| PT240 Series

Applications:
Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
Ease of assembly. No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
Brass, Nickel Plated O-Ring: Buna-N
Pressure:
Up to 250 psi depending on tube size.
Temperature Range:
When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
Fittings rated at 29.5 inches of mercury vacuum.


Brass Part Number	Tube O.D.	F	G	L	S	H	B
1161X2	1/8"	0.34"	0.35"	0.59"	0.344"	0.433"	0.14"
1161X2.5	5/32"	0.34"	0.35"	0.57"	0.344"	0.433"	0.14"
1161X4	1/4"	0.46"	0.48"	0.65"	0.470"	0.472"	0.16"
1161X8	1/2"	0.74"	0.76"	0.83"	0.746"	0.629"	0.42"
