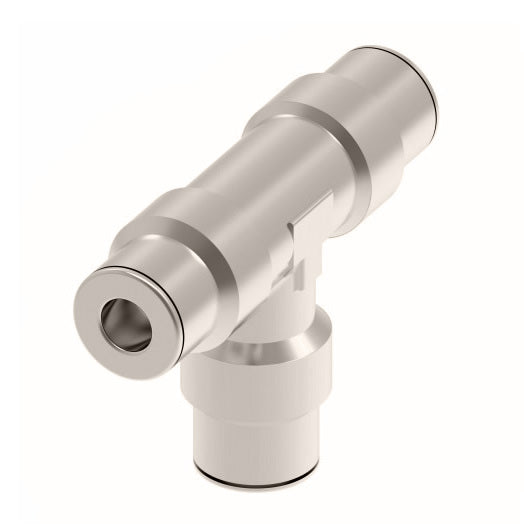

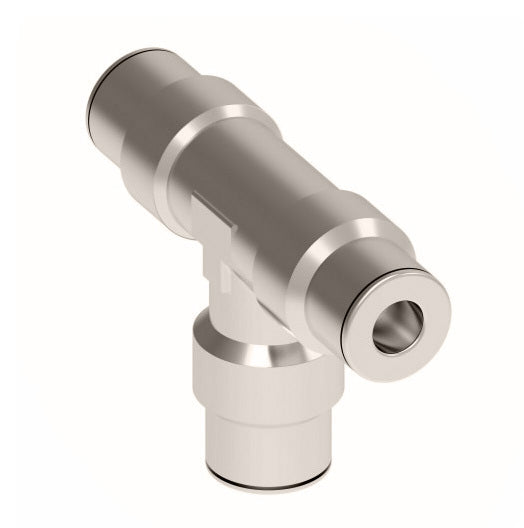

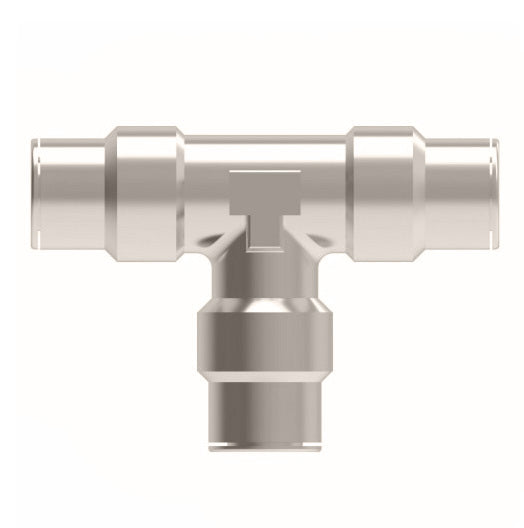

1164X10M by Danfoss | Metric Push to Connect Adapter | Union Tee | 10mm Tube OD x 10mm Tube OD x 10mm Tube OD | Nickel Plated Brass
1164X10M by Danfoss | Metric Push to Connect Adapter | Union Tee | 10mm Tube OD x 10mm Tube OD x 10mm Tube OD | Nickel Plated Brass
1164X10M by Danfoss | Metric Push to Connect Adapter | Union Tee | 10mm Tube OD x 10mm Tube OD x 10mm Tube OD | Nickel Plated Brass
1164X10M by Danfoss | Metric Push to Connect Adapter | Union Tee | 10mm Tube OD x 10mm Tube OD x 10mm Tube OD | Nickel Plated Brass

1164X10M by Danfoss | Metric Push to Connect Adapter | Union Tee | 10mm Tube OD x 10mm Tube OD x 10mm Tube OD | Nickel Plated Brass

$29.96 - $29.96
$29.96
$29.96 - $29.96
$29.96

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Union Tee
Specifications for Variant SKU: 1164X10M Danfoss
Shape (Orientation): Tee
Ends Configuration: 10mm Push-to-Connect, 10mm Push-to-Connect, 10mm Push-to-Connect, Some Ends Match
Material(s): Nickel Plated Brass
Compatible with the following Series: MTP160 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		     M5x.8
BSPT 1/8 (2PT) 1/4 (4PT)   3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP)   3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
(mm)		 C F L M SW
(mm)
1164X4M 4mm 3.5mm 9.0mm 35mm 17.5mm 8mm
1164X5M 5mm 6.0mm 11.0mm 42mm 21.0mm 9mm
1164X6M 6mm 4.0mm 12.7mm 40mm 20.0mm 9mm
1164X8M 8mm 5.0mm 14.0mm 45mm 22.5mm 11mm
1164X10M 10mm 6.5mm 16.5mm 53mm 26.5mm 13mm
1164X12M 12mm 7.5mm 19.5mm 57mm 28.5mm 15mm
