Fittings and Clamps  > Tube Fittings  > Union Tube Fittings

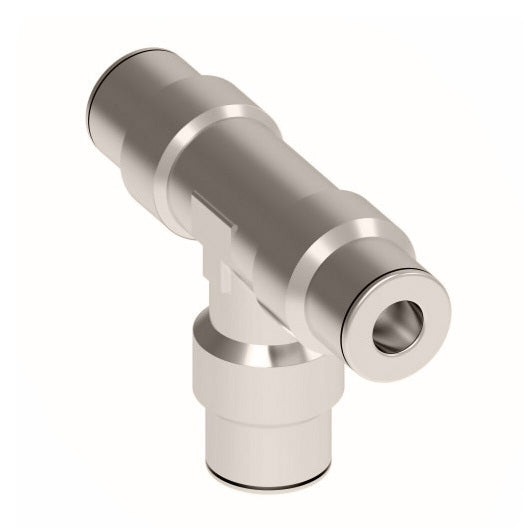

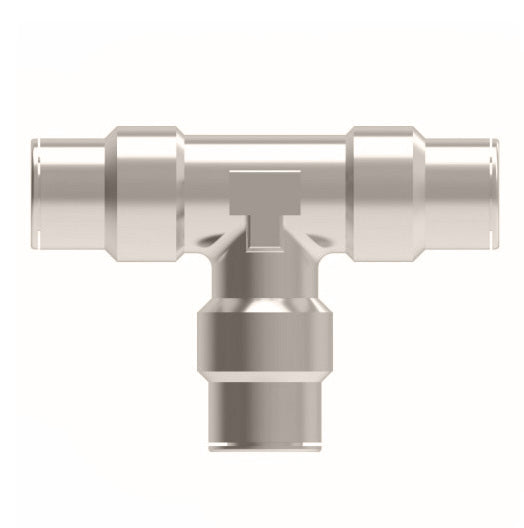

1164X12M by Danfoss | Metric Push to Connect Adapter | Union Tee | 12mm Tube OD x 12mm Tube OD x 12mm Tube OD | Nickel Plated Brass

1164X12M by Danfoss | Metric Push to Connect Adapter | Union Tee | 12mm Tube OD x 12mm Tube OD x 12mm Tube OD | Nickel Plated Brass

$24.53

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Union Tee
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 1164X12M Danfoss
Shape (Orientation): Tee
Ends Configuration: 12mm Push-to-Connect, 12mm Push-to-Connect, 12mm Push-to-Connect, Some Ends Match
Material(s): Nickel Plated Brass
Compatible with the following Series: MTP160 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		     M5x.8
BSPT 1/8 (2PT) 1/4 (4PT)   3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP)   3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
(mm)		 C F L M SW
(mm)
1164X4M 4mm 3.5mm 9.0mm 35mm 17.5mm 8mm
1164X5M 5mm 6.0mm 11.0mm 42mm 21.0mm 9mm
1164X6M 6mm 4.0mm 12.7mm 40mm 20.0mm 9mm
1164X8M 8mm 5.0mm 14.0mm 45mm 22.5mm 11mm
1164X10M 10mm 6.5mm 16.5mm 53mm 26.5mm 13mm
1164X12M 12mm 7.5mm 19.5mm 57mm 28.5mm 15mm
