1164X2.5 by Danfoss | Push to Connect Adapter | Union Tee | 5/32" Tube OD x 5/32" Tube OD x 5/32" Tube OD | Nickel Plated Brass
1164X2.5 by Danfoss | Push to Connect Adapter | Union Tee | 5/32" Tube OD x 5/32" Tube OD x 5/32" Tube OD | Nickel Plated Brass
1164X2.5 by Danfoss | Push to Connect Adapter | Union Tee | 5/32" Tube OD x 5/32" Tube OD x 5/32" Tube OD | Nickel Plated Brass
1164X2.5 by Danfoss | Push to Connect Adapter | Union Tee | 5/32" Tube OD x 5/32" Tube OD x 5/32" Tube OD | Nickel Plated Brass

1164X2.5 by Danfoss | Push to Connect Adapter | Union Tee | 5/32" Tube OD x 5/32" Tube OD x 5/32" Tube OD | Nickel Plated Brass

$10.24 - $10.24
$10.24
$10.24 - $10.24
$10.24

Aeroquip® by Danfoss

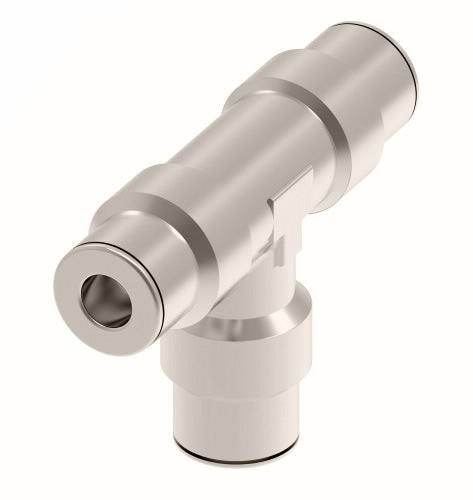

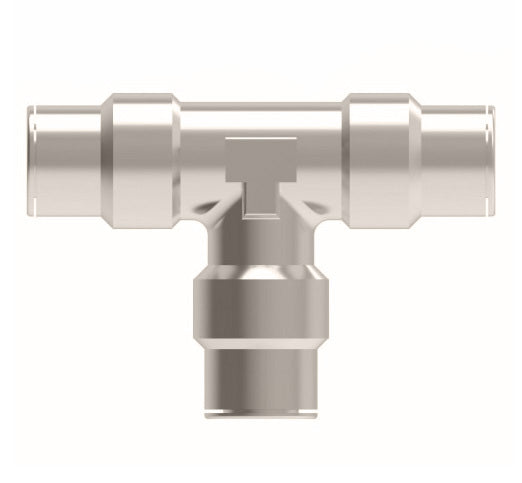

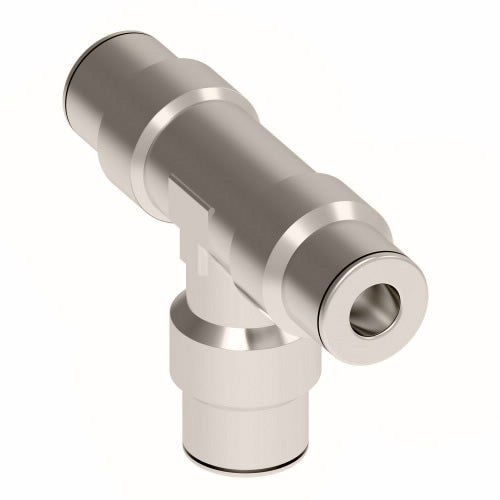

Push to Connect Adapter - Union Tee
Specifications for Variant SKU: 1164X2.5 Danfoss
Shape (Orientation): Tee
Ends Configuration: 5/32in Push-to-Connect, 5/32in Push-to-Connect, 5/32in Push-to-Connect, Some Ends Match
Material(s): Nickel Plated Brass
Compatible with the following Series: PT230 Series  |   TP160 Series  |   PT240 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
  • PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
  • Fittings rated at 29.5 inches of mercury vacuum.
Nickel Plated Brass
Part Number 		Tube O.D. C F L M SW
(mm)
1164X2 1/8" 0.14" 0.35" 1.38" 0.69" 8
1164X2.5 5/32" 0.14" 0.35" 1.38" 0.69" 8
1164X4 1/4" 0.16" 0.50" 1.57" 0.79" 9
1164X5 5/16" 0.20" 0.55" 1.77" 0.89" 11
1164X6 3/8" 0.26" 0.65" 2.09" 1.04" 13
1164X8 1/2" 0.32" 0.77" 2.24" 1.12" 15
