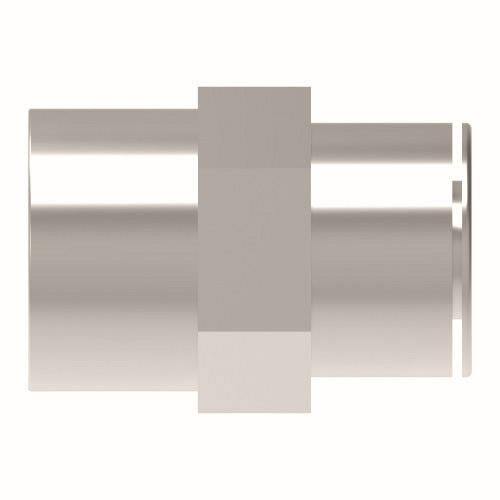

1166X2X4 by Danfoss | Push to Connect Adapter | Female Connector | 1/8" Tube OD x 1/4" Female Pipe | Nickel Plated Brass
1166X2X4 by Danfoss | Push to Connect Adapter | Female Connector | 1/8" Tube OD x 1/4" Female Pipe | Nickel Plated Brass
1166X2X4 by Danfoss | Push to Connect Adapter | Female Connector | 1/8" Tube OD x 1/4" Female Pipe | Nickel Plated Brass
1166X2X4 by Danfoss | Push to Connect Adapter | Female Connector | 1/8" Tube OD x 1/4" Female Pipe | Nickel Plated Brass

1166X2X4 by Danfoss | Push to Connect Adapter | Female Connector | 1/8" Tube OD x 1/4" Female Pipe | Nickel Plated Brass

$13.70 - $13.70
$13.70
$13.70 - $13.70
$13.70

Aeroquip® by Danfoss
Push to Connect Adapter - Female Connector
Female Pipe x Push to Connect End
Straight
Specifications for Variant SKU: 1166X2X4 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/8in Tube Compression, 1/4in Female NPT
Material(s): Nickel Plated Brass
Compatible with the following Series: PT230 Series  |   TP160 Series  |   PT240 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
  • PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
  • Fittings rated at 29.5 inches of mercury vacuum.
Nickel Plated Brass
Part Number 		Tube O.D. Female Pipe Thread C F G H L SW
(mm)
1166X2 1/8" 1/8" 0.39" 0.35" 0.51" 0.34" 0.95" 12
1166X2X4 1/8" 1/4" 0.55" 0.35" 0.65" 0.47" 1.10" 15
1166X2.5 5/32" 1/8" 0.39" 0.35" 0.51" 0.34" 0.95" 12
1166X2.5X4 5/32" 1/4" 0.55" 0.35" 0.65" 0.47" 1.10" 15
1166X4 1/4" 1/8" 0.39" 0.46" 0.51" 0.34" 1.02" 12
1166X4X4 1/4" 1/4" 0.54" 0.47" 0.65" 0.47" 1.18" 15
1166X6 3/8" 1/4" 0.51" 0.60" 0.73" 0.47" 1.30" 17
1166X6X6 3/8" 3/8" 0.55" 0.60" 0.79" 0.49" 1.34" 17
