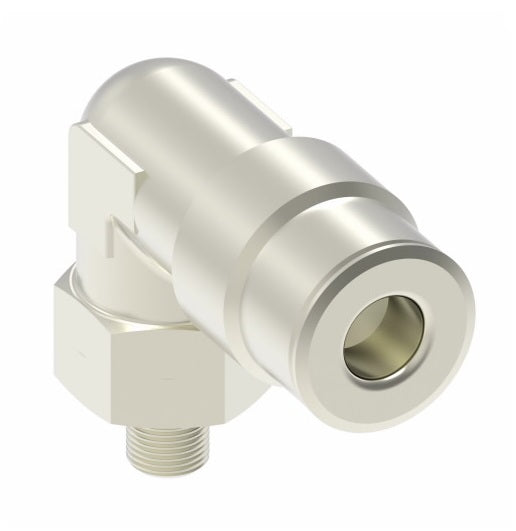

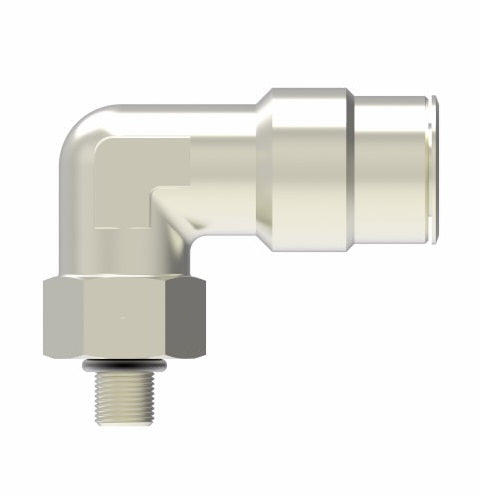

1169X4MX5MMS by Danfoss | Metric Push to Connect Adapter | Swivel Male 90° Elbow | 4mm Tube OD x M5 Male Metric | Nickel Plated Brass

1169X4MX5MMS by Danfoss | Metric Push to Connect Adapter | Swivel Male 90° Elbow | 4mm Tube OD x M5 Male Metric | Nickel Plated Brass

$12.13

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Swivel Male

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 1169X4MX5MMS Danfoss
Shape (Orientation): 90 Degree
Material(s): Nickel Plated Brass
Special Properties: Swivel
Compatible with the following Series: MTP160 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		     M5x.8
BSPT 1/8 (2PT) 1/4 (4PT)   3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP)   3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
(mm)		 Male Metric
Screw Thread Size		 C E F H M SW
(mm)		 SW1
(mm)
1169X4MX5MMS 4mm M5* 6mm 12.5mm 11.0mm 4mm 21mm 9mm 8mm
1169X5MX5MMS 5mm M5* 4mm 13.0mm 12.7mm 4mm 20mm 9mm 10mm
