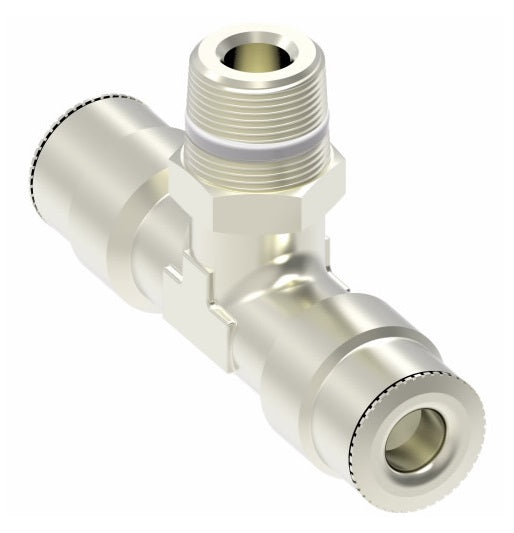

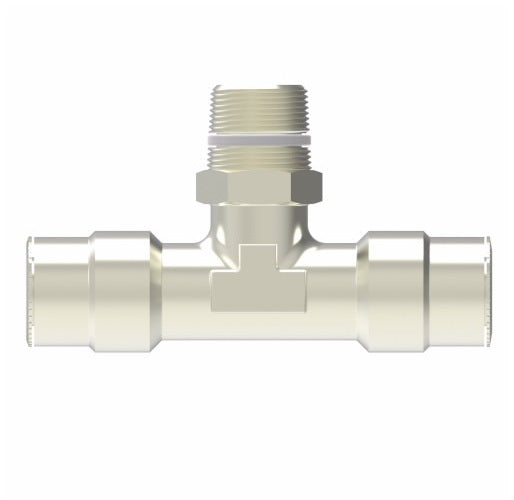

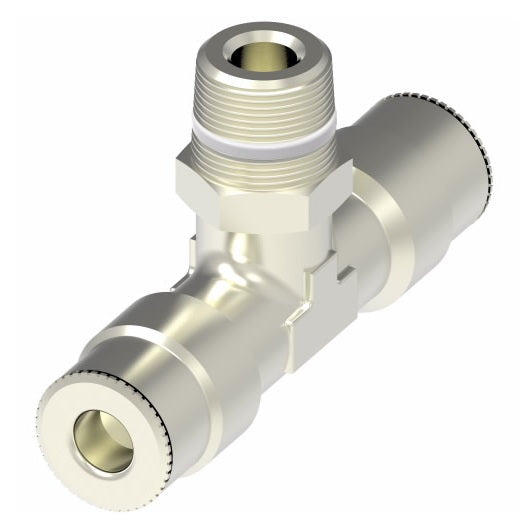

1172PX6X8S by Danfoss | Push to Connect Plus Adapter | Swivel Male Branch Tee | 3/8" Tube OD x 3/8" Tube OD x 1/2" Male Pipe | Nickel Plated Brass
1172PX6X8S by Danfoss | Push to Connect Plus Adapter | Swivel Male Branch Tee | 3/8" Tube OD x 3/8" Tube OD x 1/2" Male Pipe | Nickel Plated Brass
1172PX6X8S by Danfoss | Push to Connect Plus Adapter | Swivel Male Branch Tee | 3/8" Tube OD x 3/8" Tube OD x 1/2" Male Pipe | Nickel Plated Brass
1172PX6X8S by Danfoss | Push to Connect Plus Adapter | Swivel Male Branch Tee | 3/8" Tube OD x 3/8" Tube OD x 1/2" Male Pipe | Nickel Plated Brass

1172PX6X8S by Danfoss | Push to Connect Plus Adapter | Swivel Male Branch Tee | 3/8" Tube OD x 3/8" Tube OD x 1/2" Male Pipe | Nickel Plated Brass

$50.03 - $50.03
$50.03
$50.03 - $50.03
$50.03

Aeroquip® by Danfoss
Push to Connect Plus Adapter - Swivel Male Branch Tee
Specifications for Variant SKU: 1172PX6X8S Danfoss
Shape (Orientation): Tee
Ends Configuration: 3/8in Push-to-Connect, 3/8in Push-to-Connect, 1/2in Male NPT, Some Ends Match
Material(s): Nickel Plated Brass
Special Properties: Swivel
Overview:
  • Danfoss is proud to announce three design changes to Push>Connect products. The introduction of a low profile, sure-seal design for male NPTF threaded fittings is here. Also, an improved collet design will allow use with all types of tubing from Nylon to 90A durometer Polyurethane, including Polyethylene, and PVC tubing. Lastly, the male swivel design provides greater strength and stability.
Advantages:
  • Perfect Thread Seal: A captured Teflon® ring around the base of the hex shoulder, seals similar to a reusable (SAE type) seal eliminates thread sealant and loose particles associated with thread sealant.
  • Lower Profile: Push>Connect Plus has a lower profile for those tight places. A shorter thread design eliminates exposed threads where dirt and bacteria can collect (ideal for food processing and hygienic applications).
  • More Versatility: The new brass collet is designed for use with all types of tubing from Nylon to 90A durometer Polyurethane, including Polyethylene, and PVC tubing.
  • Super-Quick Installations: New short thread length means fewer turns and super-quick installations.
  • Improved Swivel Design: Strength and stability have been engineered into the new male swivel.
Used With:
  • Nylon, 90A durometer Polyurethane, Polyethylene, PVC tubing
Material:
  • Brass, Nickel Plated
Nickel Plated Brass
Part Number		 Tube O.D. Male Pipe
Thread		 C E F H L M SW
mm
1172PX2.5S 5/32" 1/8" 0.14" 0.59" 0.35" 0.20" 1.38" 8mm 12mm
1172PX4S 1/4" 1/8" 0.16" 0.61" 0.50" 0.20" 1.51" 9mm 12mm
1172PX4X4S 1/4" 1/4" 0.16" 0.65" 0.50" 0.26" 1.51" 9mm 14mm
1172PX4X6S 1/4" 3/8" 0.16" 0.65" 0.50" 0.30" 1.51" 9mm 19mm
1172PX6S 3/8" 1/4" 0.26" 0.77" 0.65" 0.26" 2.09" 13mm 14mm
1172PX6X6S 3/8" 3/8" 0.26" 0.77" 0.65" 0.30" 2.09" 13mm 19mm
1172PX6X8S 3/8" 1/2" 0.26" 0.79" 0.65" 0.32" 2.09" 13mm 22mm
1172PX8S 1/2" 3/8" 0.32" 0.81" 0.77" 0.30" 2.24" 15mm 19mm
