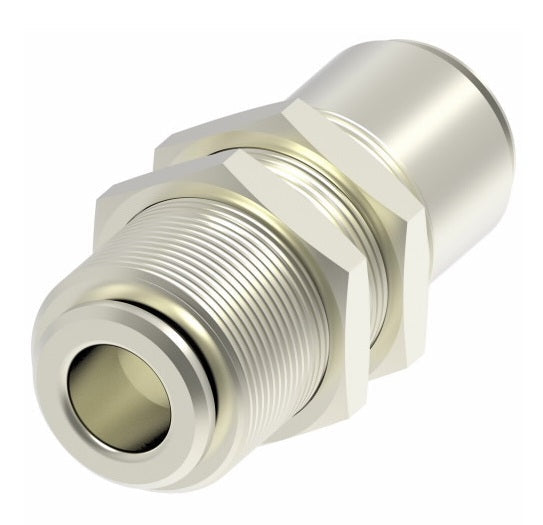

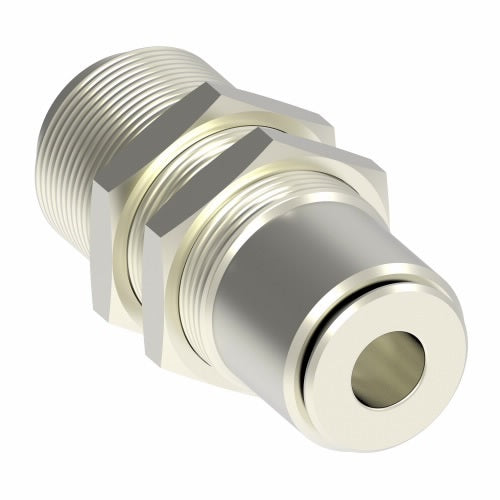

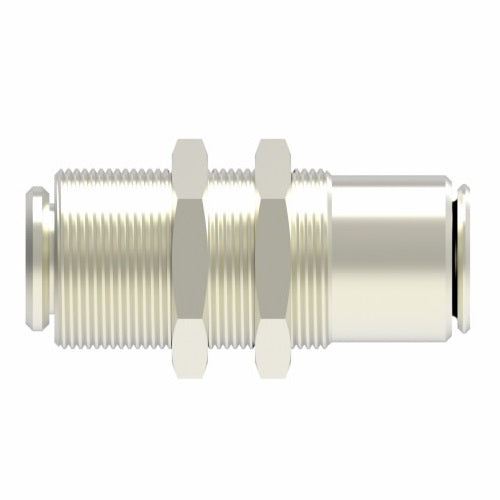

1174X10M by Danfoss | Metric Push to Connect Adapter | Bulkhead Union | 10mm Tube OD x 10mm Tube OD | Nickel Plated Brass
1174X10M by Danfoss | Metric Push to Connect Adapter | Bulkhead Union | 10mm Tube OD x 10mm Tube OD | Nickel Plated Brass
1174X10M by Danfoss | Metric Push to Connect Adapter | Bulkhead Union | 10mm Tube OD x 10mm Tube OD | Nickel Plated Brass
1174X10M by Danfoss | Metric Push to Connect Adapter | Bulkhead Union | 10mm Tube OD x 10mm Tube OD | Nickel Plated Brass

1174X10M by Danfoss | Metric Push to Connect Adapter | Bulkhead Union | 10mm Tube OD x 10mm Tube OD | Nickel Plated Brass

$25.58 - $25.58
$25.58
$25.58 - $25.58
$25.58

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Bulkhead Union
Specifications for Variant SKU: 1174X10M Danfoss
Shape (Orientation): Straight
Ends Configuration: 10mm Push-to-Connect, 10mm Push-to-Connect, Some Ends Match
Material(s): Nickel Plated Brass
Compatible with the following Series: MTP160 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		     M5x.8
BSPT 1/8 (2PT) 1/4 (4PT)   3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP)   3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
(mm)		 B F L N Max SW
(mm)		 SW1
(mm)		 T
1174X4M 4mm M10x1 8.40mm 29.0mm 14.5mm 10.5mm 14mm 14mm 20.0mm
1174X5M 5mm M12x1 9.80mm 31.0mm 15.0mm 10.5mm 17mm 17mm 20.0mm
1174X6M 6mm M14x1 11.70mm 33.0mm 16.0mm 10.5mm 17mm 17mm 20.0mm
1174X8M 8mm M16x1 13.70mm 36.0mm 17.5mm 11.5mm 19mm 19mm 21.0mm
1174X10M 10mm M18x1 15.4mm 41.5mm 20.0mm 13.0mm 22mm 22mm 23.5mm
1174X12M 12mm M20x1 18.3mm 43.5mm 21.0mm 14.5mm 24mm 24mm 25.0mm
>
