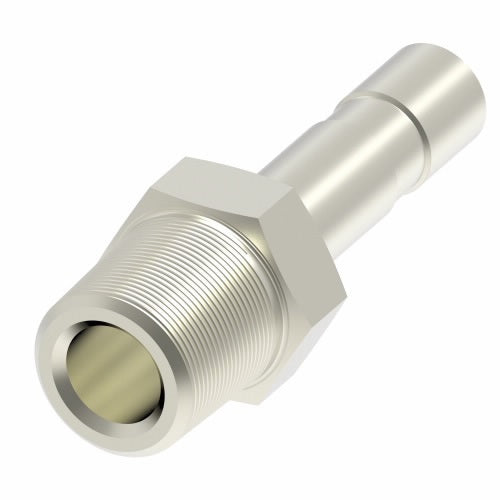

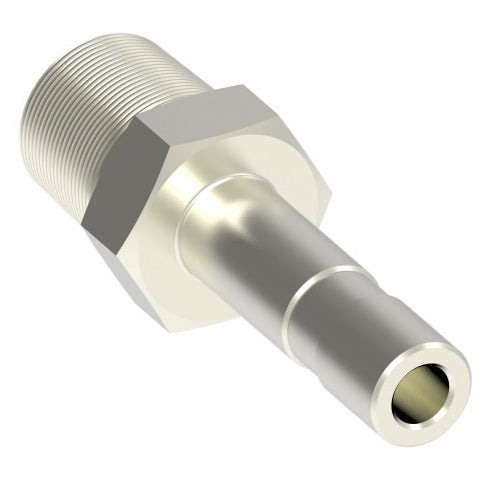

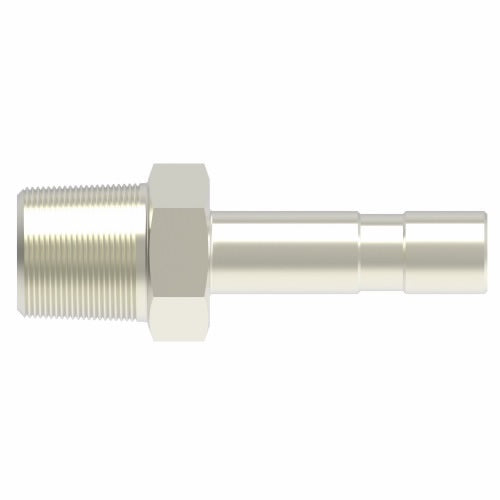

1180X8MX4PP by Danfoss | Metric Push to Connect Adapter | Stem Adapter | 8mm Tube OD x 1/4" Male BSPP | Nickel Plated Brass

1180X8MX4PP by Danfoss | Metric Push to Connect Adapter | Stem Adapter | 8mm Tube OD x 1/4" Male BSPP | Nickel Plated Brass

Name: 1180X8MX4PP by Danfoss | Metric Push to Connect Adapter | Stem Adapter | 8mm Tube OD x 1/4" Male BSPP | Nickel Plated Brass
Brand: Danfoss/Eaton
SKU: 1180X8MX4PP Danfoss
Price: 8.19 USD
Availability: InStock

$8.19 - $8.19

$8.19

$8.19 - $8.19

$8.19

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Stem Adapter

Quantity

Specifications for Variant SKU: 1180X8MX4PP Danfoss
Shape (Orientation):	Straight
Ends Configuration:	8mm Push-to-Connect, 1/4in Male BSPP
Material(s):	Nickel Plated Brass
Compatible with the following Series:	MTP160 Series

Applications:
Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
Ease of assembly. No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
MTP160 nylon tubing.
Material:
Brass, Nickel Plated O-Ring: Buna-N
Pressure:
Up to 250 psi depending on tube size.
Temperature Range:
-40°F to 200°F (-40°C to 93°C).

Nominal Size	2	4	5MM	6	8
Thread
MM (Metric Screw Thread)			M5x.8
BSPT	1/8 (2PT)	1/4 (4PT)		3/8 (6PT)	1/2 (8PT)
BSPP	1/8 (2PP)	1/4 (4PP)		3/8 (6PP)	1/2


Nickel Plated Brass Part Number	Tube OD (mm)	Male BSPP (mm)	H	T	L	SW
1180X8MX4PP	8mm	1/4"	7.0mm	20.5mm	33.5mm	14mm

h

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
