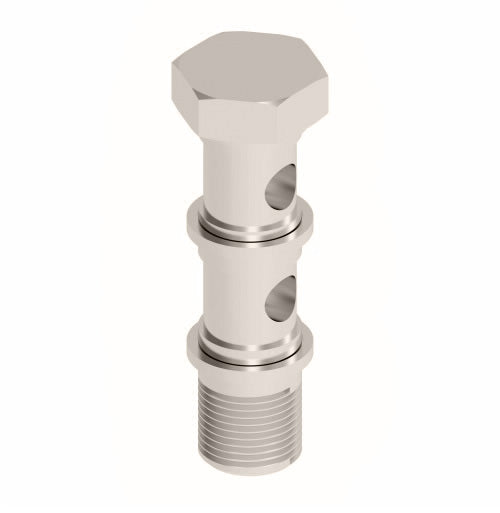

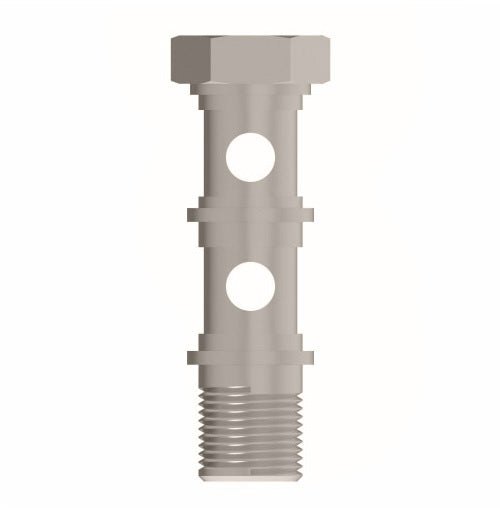

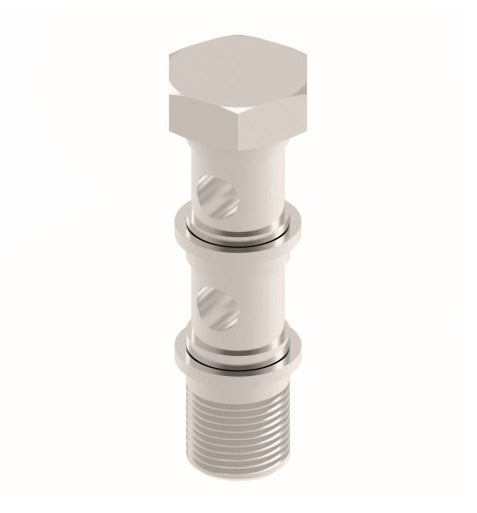

1185X2X4 by Danfoss | Push to Connect Adapter | Double Stud Manifold | 1/4" Male Pipe | Nickel Plated Brass

1185X2X4 by Danfoss | Push to Connect Adapter | Double Stud Manifold | 1/4" Male Pipe | Nickel Plated Brass

Name: 1185X2X4 by Danfoss | Push to Connect Adapter | Double Stud Manifold | 1/4" Male Pipe | Nickel Plated Brass
Brand: Danfoss/Eaton
SKU: 1185X2X4 Danfoss
Price: 10.69 USD
Availability: InStock

$10.69 - $10.69

$10.69

$10.69 - $10.69

$10.69

Aeroquip® by Danfoss
Push to Connect Adapter - Double Stud Manifold

Quantity

Specifications for Variant SKU: 1185X2X4 Danfoss
Shape (Orientation):	Straight
Material(s):	Nickel Plated Brass
Compatible with the following Series:	PT230 Series \| TP160 Series \| PT240 Series

Applications:
Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
Ease of assembly. No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
Brass, Nickel Plated O-Ring: Buna-N
Pressure:
Up to 250 psi depending on tube size.
Temperature Range:
When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
Fittings rated at 29.5 inches of mercury vacuum.


Nickel Plated Brass Part Number	Male Pipe Thread A	H	L	SW
1185X2X4	1/4"	0.32"	1.79"	0.67
