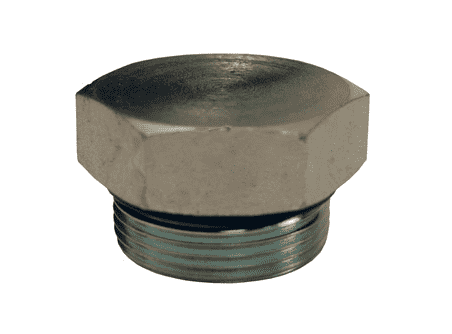

1255-24H Dixon Zinc Plated Steel 1-7/8"-12 SAE O-Ring Boss Thread Plug

1255-24H Dixon Valve Zinc Plated Steel 1-7/8"-12 SAE O-Ring Boss Thread Plug

Save $1.33 Save $1.33
$12.00
$12.00 - $12.00
$12.00
$10.67
$10.67 - $10.67
$10.67

ORB Fittings - SAE O-Ring Boss Thread Plugs - Zinc Plated Steel

Specifications for Variant SKU: 1255-24H Dixon
Ends Configuration: 1-1/2in Male O-Ring Boss
Material(s): Zink-Plated Steel
Features:
  • N/A
Part Number Thread Size Working Pressure Weight (Lbs.)
1255-04H 7/16"-20 5000 PSI 0.0258
1255-06H 9/16"-18 5000 PSI 0.0420
1255-08H 3/4"-16 4500 PSI 0.1100
1255-10H 7/8"-14 3500 PSI 0.1040
1255-12H 1-1/16"-12 3500 PSI 0.1250
1255-16H 1-5/16"-12 3000 PSI 0.3600
1255-20H 1-5/8"-12 2500 PSI 0.6600
1255-24H 1-7/8"-12 2000 PSI 1.1000
1255-32H 2-1/2"-12 1500 PSI 1.7800
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
