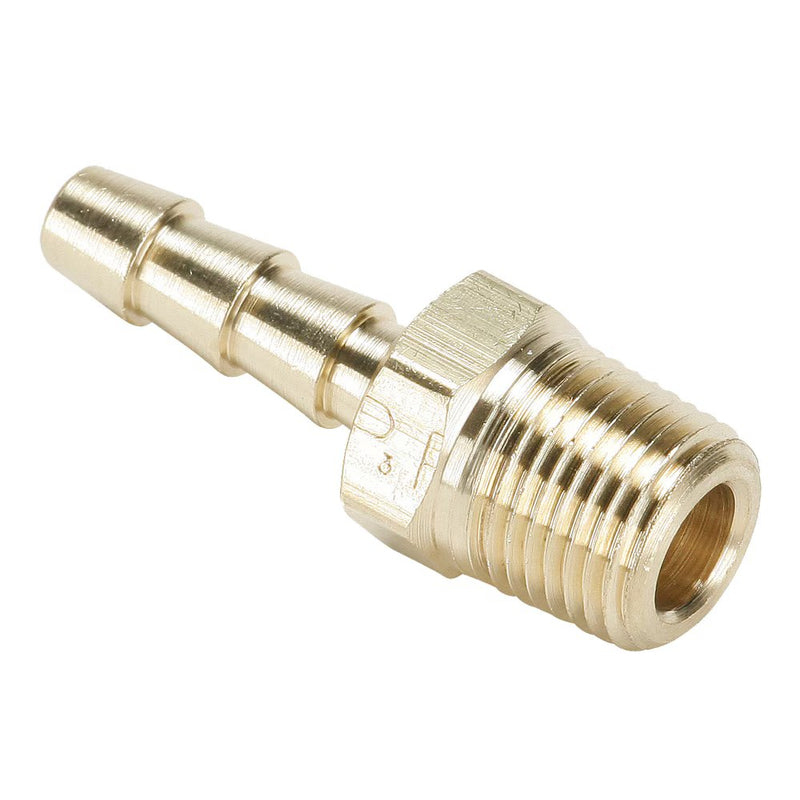

125HBL-6-8 by Parker | Hose Barb Fittings | 3/8" Hose Barb x 1/2" Male Pipe Thread | 7/8" Hex | 1.97" Length | Straight | Brass | Pack of 25

125HBL-6-8 by Parker | Hose Barb Fittings | 3/8" Hose Barb x 1/2" Male Pipe Thread | 7/8" Hex | 1.97" Length | Straight | Brass | Pack of 25

Save $9.76 Save $9.76
$107.37
$107.37 - $107.37
$107.37
$97.61
$97.61 - $97.61
$97.61

by Parker Hannifin
Hose Barb Fittings:Hose Barb to Male Pipe 125HBL

Package Quantity: 25 Units

Specifications for Variant SKU: 125HBL-6-8 Parker | 25 |
Series: 125HBL Series
Shape (Orientation): Straight
Material(s): Brass
Product Features:
  • All brass construction
  • Fluorocarbon O-rings
  • NPTF, SAE straight thread, metric thread ends
  • Reusable
  • Clamp required
Markets:
  • Industrial
  • Construction
  • Heavy duty truck
  • Mobile
Applications:
  • Air Lines
  • Water Line
  • Cooling Lines
Specification:
Temperature Range: -40° to +160° F (-40° to +71.1° C)
Pressure Range: Up to 150 PSI (10.3 bar)
Part Number ID Hose Size Pipe Thread Hex (C) L M OD Flow Diameter (D)
125HBL-4-2 1/4" 1/8" 7/16" 1.54" .97" .290" .187"
125HBL-4-4 1/4" 1/4" 9/16" 1.72" .97" .290" .187"
125HBL-4-6 1/4" 3/8" 11/16" 1.77" .97" .290" .187"
125HBL-5-2 5/16" 1/8" 7/16" 1.54" .97" .353" .250"
125HBL-5-4 5/16" 1/4" 9/16" 1.72" .97" .353" .250"
125HBL-5-6 5/16" 3/8" 11/16" 1.77" .97" .353" .250"
125HBL-6-2 3/8" 1/8" 7/16" 1.54" .97" .415" .281"
125HBL-6-4 3/8" 1/8" 9/16" 1.72" .97" .415" .281"
125HBL-6-6 3/8" 3/8" 11/16" 1.77" .97" .415" .281"
125HBL-6-8 3/8" 1/2" 7/8" 1.97" .97" .415" .281"
125HBL-8-4 1/2" 1/4" 9/16" 1.72" .97" .530" .375"
125HBL-8-6 1/2" 3/8" 11/16" 1.77" .97" .530" .375"
125HBL-8-8 1/2" 1/2" 7/8" 1.97" .97" .530" .375"
125HBL-8-12 1/2" 3/4" 1-1/16" 1.98" .97" .530" .375"
125HBL-10-6 5/8" 3/8" 11/16" 1.77" .97" .645" .468"
125HBL-10-8 5/8" 1/2" 7/8" 1.97" .97" .645" .468"
125HBL-10-12 5/8" 3/4" 1-1/16" 1.98" .97" .645" .468"
125HBL-12-8 3/4" 1/2" 7/8" 1.97" .97" .790" .562"
125HBL-12-12 3/4" 3/4" 1-1/16" 1.98" .97" .790" .562"
125HBL-16-12 1" 3/4" 1-1/16" 2.18" 1.17" 1.02" .750"
125HBL-16-16 1" 1" 1-3/8" 2.36" 1.17" 1.02" .875"
