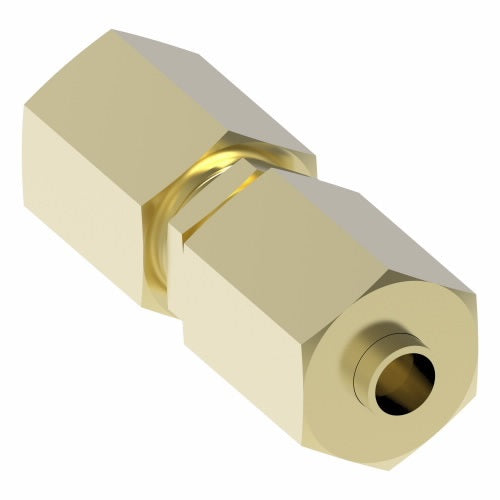

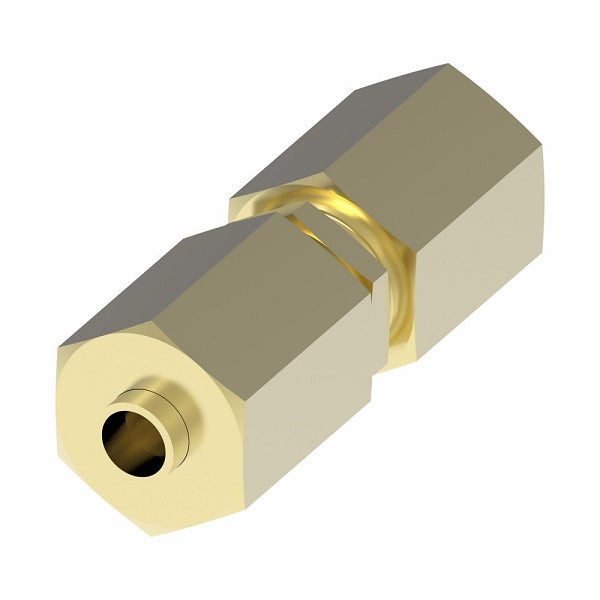

1262X6 by Danfoss | Polyline Flareless Adapter | Union | 3/8" Tube OD x 3/8" Tube OD | Brass
1262X6 by Danfoss | Polyline Flareless Adapter | Union | 3/8" Tube OD x 3/8" Tube OD | Brass
1262X6 by Danfoss | Polyline Flareless Adapter | Union | 3/8" Tube OD x 3/8" Tube OD | Brass
1262X6 by Danfoss | Polyline Flareless Adapter | Union | 3/8" Tube OD x 3/8" Tube OD | Brass

1262X6 by Danfoss | Polyline Flareless Adapter | Union | 3/8" Tube OD x 3/8" Tube OD | Brass

$10.10 - $10.10
$10.10
$10.10 - $10.10
$10.10

Aeroquip® by Danfoss
Polyline Flareless Adapter - Union
Polyline Flareless End x Polyline Flareless End
Straight
Specifications for Variant SKU: 1262X6 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Tube Compression, 3/8in Tube Compression, Some Ends Match
Material(s): Brass
Compatible with the following Series: PT200 Series  |   PT240 Series
Applications:
  • Pneumatic instrumentation circuits, lubricant and cooling lines.
Advantages:
  • No flaring of tubing required.
  • Easy installation.
  • Captive sleeve.
  • Pre-assembled for installation and can be reassembled.
  • Excellent vibration resistance.
Used With:
  • PT200 and PT240 plastic tubing.
  • Not recommended for metal tubing.
  • Not recommended for use with PT230, TP160 or Air Brake tubing.
Material:
  • CA360 Brass Body
  • Plastic Sleeve
Pressure:
  • Working pressure up to 500 psi with a 4:1 safety factor depending on tubing.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • An exclusive product design, user approvals only
Size x46 x4 x5 x6 x8
Tube O.D. 1/4" 1/4" 5/16" 3/8" 1/2"
Thread Size B 3/8-24 3/8-24 7/16-24 1/2-24 11/16-20
Flow Dia. (D1) .078" .125" .141" .203" .312"
Support Dia. (D2) .120" .166" .180" .245" .370"
Brass
Part Number 		Tube O.D. Hex C L L1
1262X4 1/4" 3/8" 1.00" 0.69"
1262X6 3/8" 1/2" 1.03" 0.72"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
