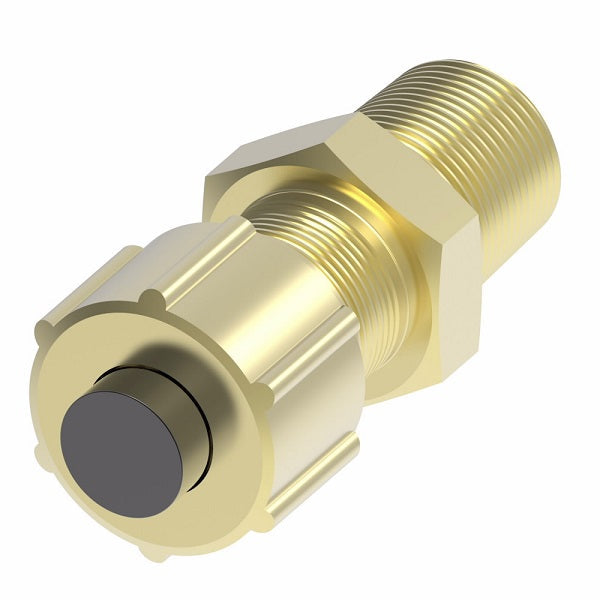

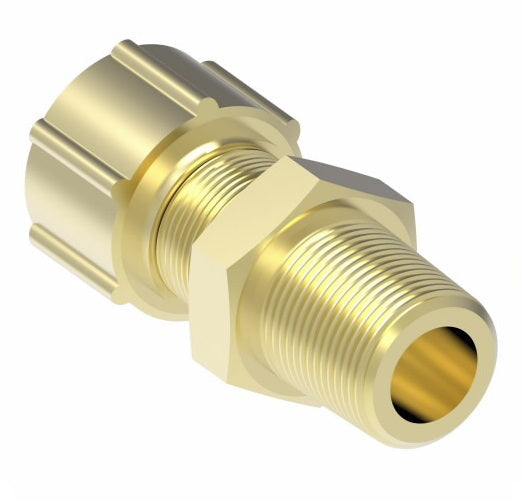

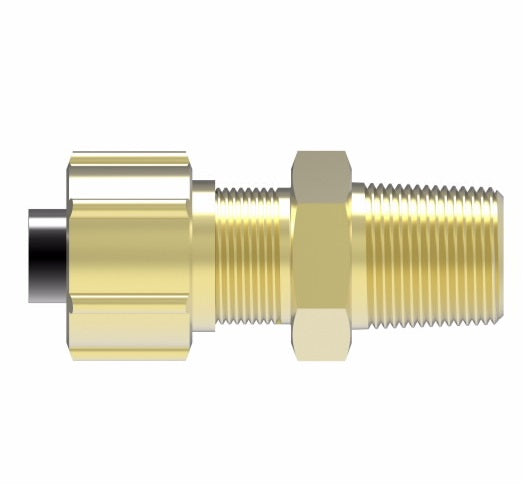

1268X4X4 by Danfoss | Polyline Flareless Adapter | Male Connector | 1/4" Tube OD x 1/4" Male NPTF | Brass

Original price $10.12 - Original price $10.12
Original price
$10.12
$10.12 - $10.12
Current price $10.12

Aeroquip® by Danfoss
Polyline Flareless Adapter - Male Connector
Polyline Flareless End x Male NPTF
Straight

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 1268X4X4 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Tube Compression X 1/4in Male NPTF
Material(s): Brass
Compatible with the following Series: PT200 Series  |   PT240 Series
Applications:
  • Pneumatic instrumentation circuits, lubricant and cooling lines.
Advantages:
  • No flaring of tubing required.
  • Easy installation.
  • Captive sleeve.
  • Pre-assembled for installation and can be reassembled.
  • Excellent vibration resistance.
Used With:
  • PT200 and PT240 plastic tubing.
  • Not recommended for metal tubing.
  • Not recommended for use with PT230, TP160 or Air Brake tubing.
Material:
  • CA360 Brass Body
  • Plastic Sleeve
Pressure:
  • Working pressure up to 500 psi with a 4:1 safety factor depending on tubing.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • An exclusive product design, user approvals only
Size x46 x4 x5 x6 x8
Tube O.D. 1/4" 1/4" 5/16" 3/8" 1/2"
Thread Size B 3/8-24 3/8-24 7/16-24 1/2-24 11/16-20
Flow Dia. (D1) .078" .125" .141" .203" .312"
Support Dia. (D2) .120" .166" .180" .245" .370"
Brass
Part Number
Tube O.D. Male Pipe Thread Hex C L L1
1268X4X1 1/4" 1/16" 7/16" 0.97" 0.81"
1268X4 1/4" 1/8" 7/16" 0.97" 0.81"
1268X4X4 1/4" 1/4" 9/16" 1.15" 1.00"
1268X6X2 3/8" 1/8" 1/2" 1.00" 0.84"
1268X6 3/8" 1/4" 9/16" 1.19" 1.03"
1268X6X6 3/8" 3/8" 11/16" 1.19" 1.03"
1268X8 1/2" 3/8" 11/16" 1.31" 1.09"
