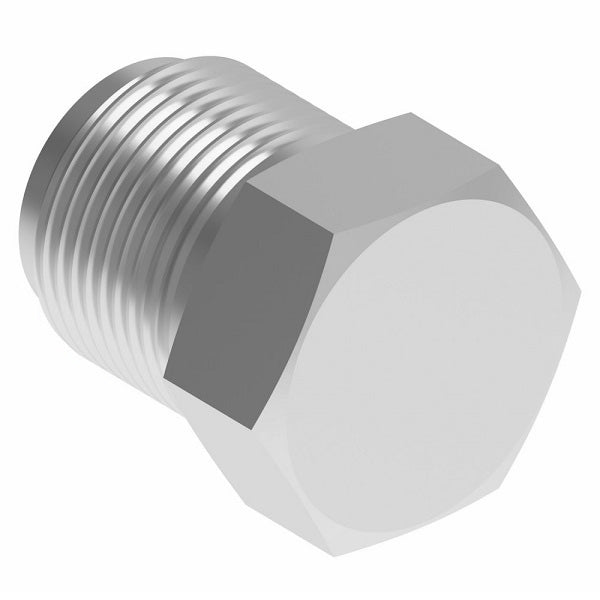

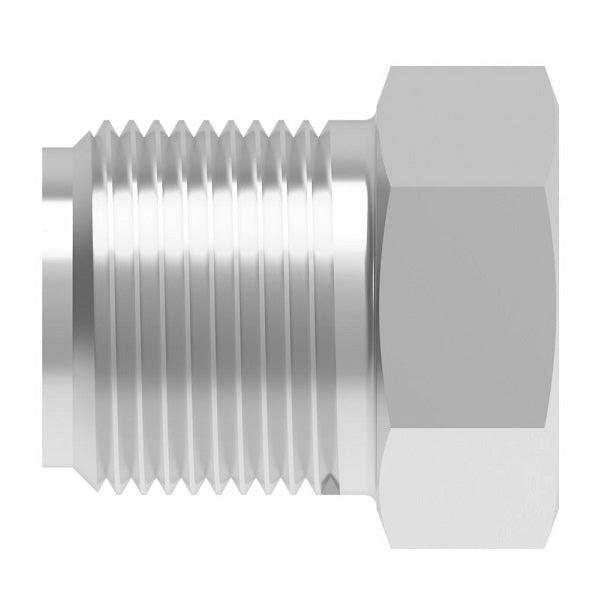

131X6 by Danfoss | Inverted Flare Plug | 3/8" Tube OD | Steel
131X6 by Danfoss | Inverted Flare Plug | 3/8" Tube OD | Steel
131X6 by Danfoss | Inverted Flare Plug | 3/8" Tube OD | Steel
131X6 by Danfoss | Inverted Flare Plug | 3/8" Tube OD | Steel

131X6 by Danfoss | Inverted Flare Plug | 3/8" Tube OD | Steel

$2.59 - $2.59
$2.59
$2.59 - $2.59
$2.59

Aeroquip® by Danfoss
Inverted Flare Plug
Specifications for Variant SKU: 131X6 Danfoss
Shape (Orientation): No Orientation
Material(s): Steel
Overview:
  • Danfoss brass tube fittings are precision machined to meet SAE standards and specifications.
Applications:
  • Hydraulic brake, power steering, fuel lines and transmission cooler lines.
Advantages:
  • Very low cost and reusable.
  • Seats and threads are internal and protected.
  • Compact, excellent vibration life.
  • Short nut affords very close tube bends.
Used With:
  • Copper, brass, aluminum and steel hydraulic tubing that can be flared.
Pressure:
  • Working pressure up to 2000 psi depending on tube size. Will withstand burst pressure of standard tubing - up to 5000 psi with bundyweld (double flared) and 3500 psi with copper tubing, depending on size.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
  • Ref. SAE No. 040109.
  • Listed by Underwriter'.s Laboratories (available on special order) for fuel equipment, refrigeration and gas.
  • Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 7/8" 1"
Thread Size 5/16-28 3/8-24 7/16-24 1/2-20 5/8-18 11/16-18 3/4-18 7/8-18 1-1/16-16 1-3/16-16 1-5/16-16
Steel
Part Number 		Tube O.D. Hex
C		 D L
131X3 3/16" 3/8" 0.188" 0.53"
131X4 1/4" 7/16" 0.188" 0.54"
131X5 5/16" 1/2" 0.250" 0.59"
131X6 3/8" 5/8" 0.312" 0.66"
