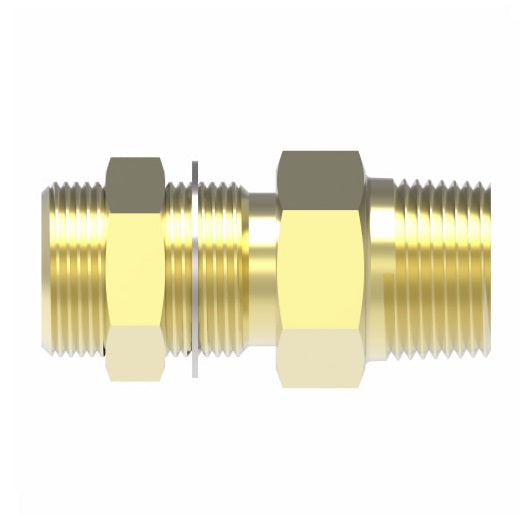

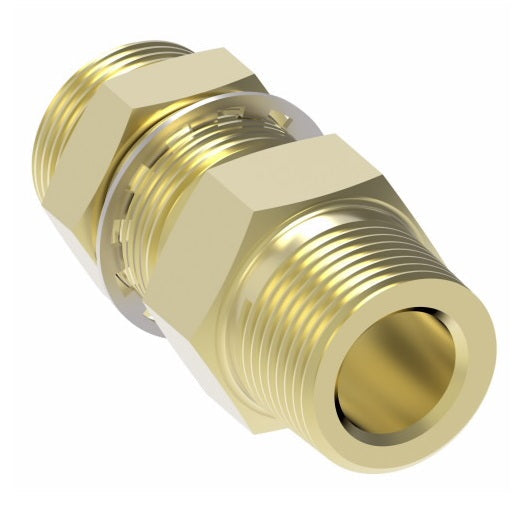

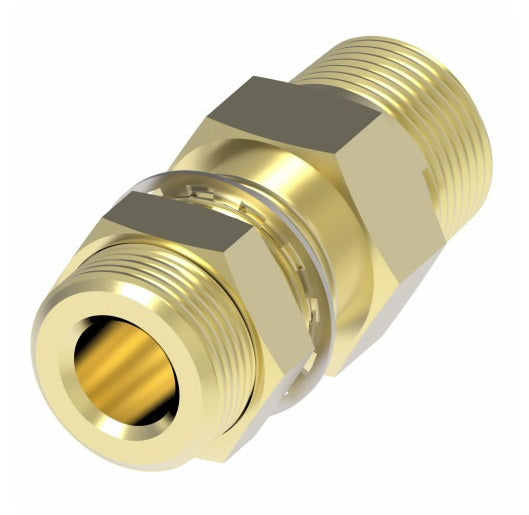

1340 by Danfoss | Air Brake Adapter for Copper Tubing | Bulkhead Coupling (2.16" Length) | 1/2" Male Pipe x 1/4" Female Pipe x 3/4" Male UNF | Brass

1340 by Danfoss | Air Brake Adapter for Copper Tubing | Bulkhead Coupling (2.16" Length) | 1/2" Male Pipe x 1/4" Female Pipe x 3/4" Male UNF | Brass

Name: 1340 by Danfoss | Air Brake Adapter for Copper Tubing | Bulkhead Coupling (2.16" Length) | 1/2" Male Pipe x 1/4" Female Pipe x 3/4" Male UNF | Brass
Brand: Danfoss/Eaton
SKU: 1340 Danfoss
Price: 19.46 USD
Availability: InStock

$19.46 - $19.46

$19.46

$19.46 - $19.46

$19.46

Aeroquip® by Danfoss
Air Brake Adapter for Copper Tubing - Bulkhead Coupling

Quantity

Specifications for Variant SKU: 1340 Danfoss
Shape (Orientation):	Straight
Material(s):	Brass

Applications:
Air brake systems.
Advantages:
Easy to assemble (no flaring). May be used with nylon tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut. Fair Vibration Resistance.
Used With:
Copper tubing in air brake systems.
Material:
CA360 Brass.
Pressure:
Maximum operating pressure of 150 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C) with copper tubing.
Conformance:
Meets specifications and standards of SAE and DOT.


Brass Part Number	Male Pipe Thread	Female Pipe Thread	Thread Size B	Hex C	Hex C1	D	I	L
1340	1/2"	1/4"	3/4-16	1-1/4"	15/16"	0.312"	1.13"	2.16"
1341	1/2"	1/4"	3/4-16	1-1/4"	15/16"	0.312"	1.53"	2.53"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
