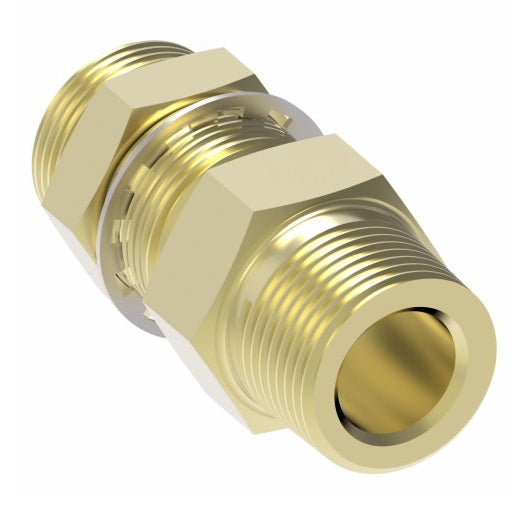

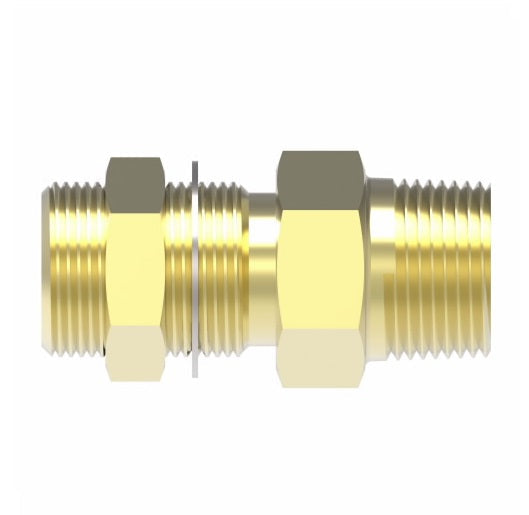

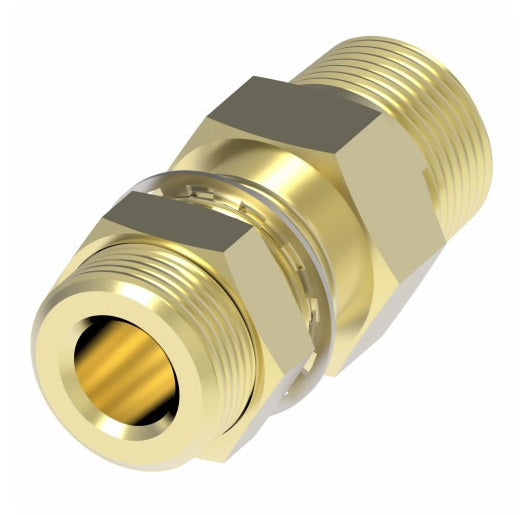

1341 by Danfoss | Air Brake Adapter for Copper Tubing | Bulkhead Coupling (2.53" Length) | 1/2" Male Pipe x 1/4" Female Pipe x 3/4" Male UNF | Brass
1341 by Danfoss | Air Brake Adapter for Copper Tubing | Bulkhead Coupling (2.53" Length) | 1/2" Male Pipe x 1/4" Female Pipe x 3/4" Male UNF | Brass
1341 by Danfoss | Air Brake Adapter for Copper Tubing | Bulkhead Coupling (2.53" Length) | 1/2" Male Pipe x 1/4" Female Pipe x 3/4" Male UNF | Brass
1341 by Danfoss | Air Brake Adapter for Copper Tubing | Bulkhead Coupling (2.53" Length) | 1/2" Male Pipe x 1/4" Female Pipe x 3/4" Male UNF | Brass

1341 by Danfoss | Air Brake Adapter for Copper Tubing | Bulkhead Coupling (2.53" Length) | 1/2" Male Pipe x 1/4" Female Pipe x 3/4" Male UNF | Brass

$43.89 - $43.89
$43.89
$43.89 - $43.89
$43.89

Aeroquip® by Danfoss
Air Brake Adapter for Copper Tubing - Bulkhead Coupling
Specifications for Variant SKU: 1341 Danfoss
Shape (Orientation): Straight
Material(s): Brass
Applications:
  • Air brake systems.
Advantages:
  • Easy to assemble (no flaring).
  • May be used with nylon tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut.
  • Fair Vibration Resistance.
Used With:
  • Copper tubing in air brake systems.
Material:
  • CA360 Brass.
Pressure:
  • Maximum operating pressure of 150 psi.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with copper tubing.
Conformance:
  • Meets specifications and standards of SAE and DOT.
Brass
Part Number 		Male Pipe Thread Female Pipe Thread Thread Size
B		 Hex
C		 Hex
C1		 D I L
1340 1/2" 1/4" 3/4-16 1-1/4" 15/16" 0.312" 1.13" 2.16"
1341 1/2" 1/4" 3/4-16 1-1/4" 15/16" 0.312" 1.53" 2.53"
