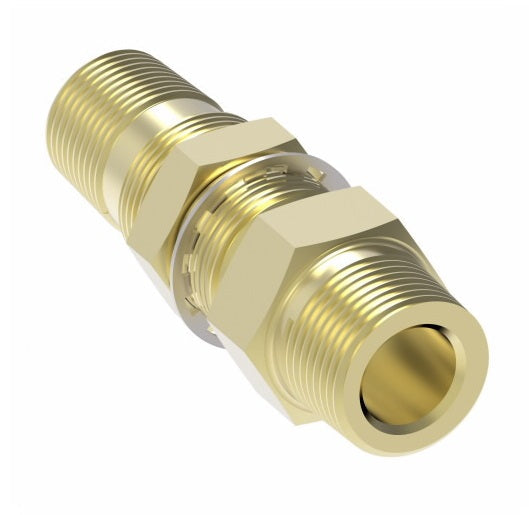

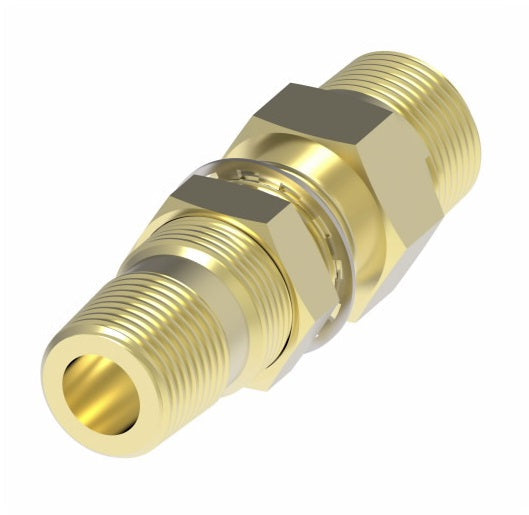

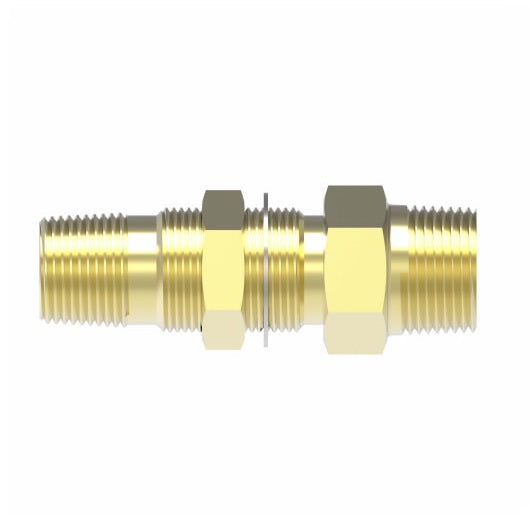

1343 by Danfoss | Air Brake Adapter for Copper Tubing | Bulkhead Coupling (3.94" Length) | 1/2" Male Pipe x 1/4" Male Pipe | Brass

1343 by Danfoss | Air Brake Adapter for Copper Tubing | Bulkhead Coupling (3.94" Length) | 1/2" Male Pipe x 1/4" Male Pipe | Brass

Name: 1343 by Danfoss | Air Brake Adapter for Copper Tubing | Bulkhead Coupling (3.94" Length) | 1/2" Male Pipe x 1/4" Male Pipe | Brass
Brand: Danfoss/Eaton
SKU: 1343 Danfoss
Price: 92.02 USD
Availability: InStock

$92.02 - $92.02

$92.02

$92.02 - $92.02

$92.02

Aeroquip® by Danfoss
Air Brake Adapter for Copper Tubing - Bulkhead Coupling

Quantity

Specifications for Variant SKU: 1343 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male NPT, 1/4in Male NPT
Material(s):	Brass

Applications:
Air brake systems.
Advantages:
Easy to assemble (no flaring). May be used with nylon tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut. Fair Vibration Resistance.
Used With:
Copper tubing in air brake systems.
Material:
CA360 Brass.
Pressure:
Maximum operating pressure of 150 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C) with copper tubing.
Conformance:
Meets specifications and standards of SAE and DOT.


Brass Part Number	Male Pipe Thread	Female Pipe Thread	Thread Size B	Hex C	Hex C1	D	I	L
1342	1/2"	1/4"	1-14	1-1/4"	1-3/8"	0.375"	1.88"	2.94"
1343	1/2"	1/4"	1-14	1-1/4"	1-3/8"	0.375"	2.88"	3.94"
