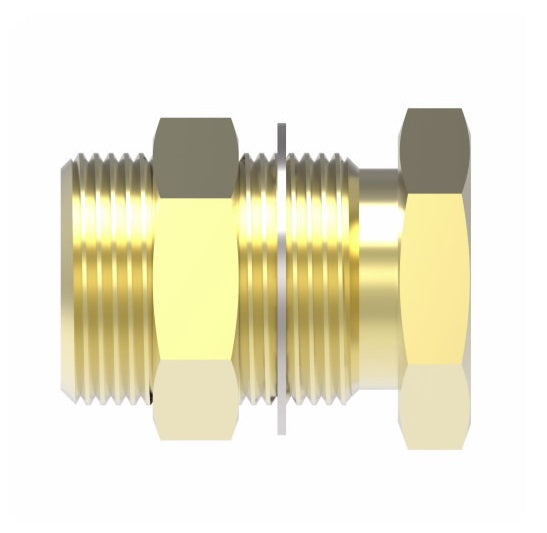

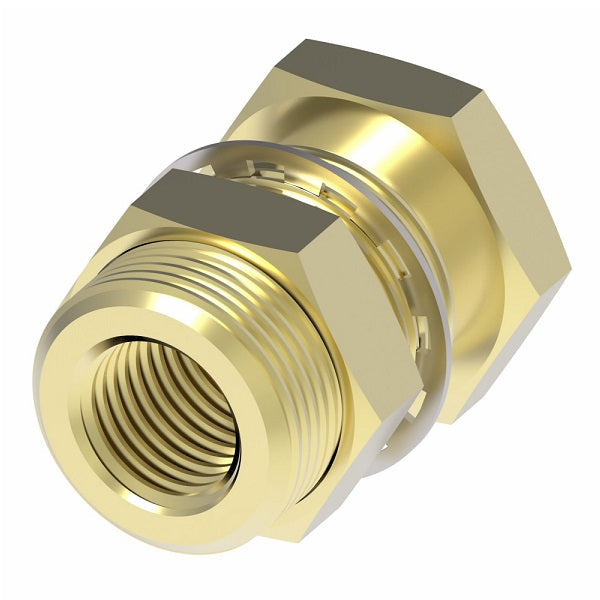

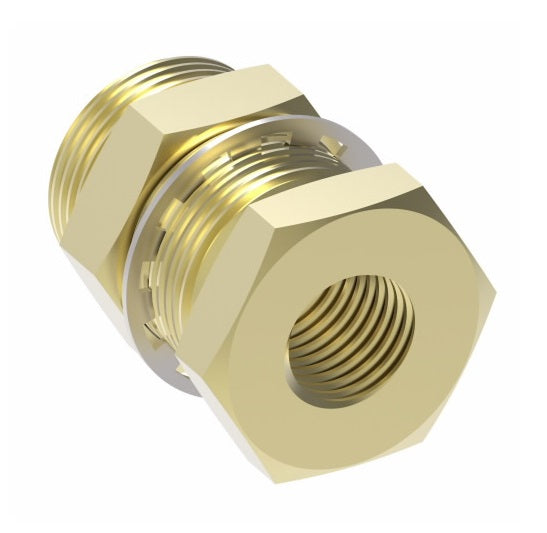

1344 by Danfoss | Air Brake Adapter for Copper Tubing | Bulkhead Coupling | 1/4" Female Pipe x 1/4" Female Pipe | Brass

1344 by Danfoss | Air Brake Adapter for Copper Tubing | Bulkhead Coupling | 1/4" Female Pipe x 1/4" Female Pipe | Brass

Name: 1344 by Danfoss | Air Brake Adapter for Copper Tubing | Bulkhead Coupling | 1/4" Female Pipe x 1/4" Female Pipe | Brass
Brand: Danfoss/Eaton
SKU: 1344 Danfoss
Price: 10.74 USD
Availability: InStock

$10.74 - $10.74

$10.74

$10.74 - $10.74

$10.74

Aeroquip® by Danfoss
Air Brake Adapter for Copper Tubing - Bulkhead Coupling

Quantity

Specifications for Variant SKU: 1344 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female NPT, 1/4in Female NPT, Some Ends Match
Material(s):	Brass

Applications:
Air brake systems.
Advantages:
Easy to assemble (no flaring). May be used with nylon tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut. Fair Vibration Resistance.
Used With:
Copper tubing in air brake systems.
Material:
CA360 Brass.
Pressure:
Maximum operating pressure of 150 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C) with copper tubing.
Conformance:
Meets specifications and standards of SAE and DOT.


Brass Part Number	Female Pipe Thread	Thread Size B	Hex C	Hex C1	D	I	L
1344	1/4"	3/4-16	1"	15/16"	0.422"	1.25"	1.50"
1345	1/4"	3/4-16	1"	15/16"	0.422"	0.69"	0.94"
1346	3/8"	1-14	1-1/8"	1-3/8"	0.563"	1.06"	1.31"
1351	1/2"	1-1/8-14	1-1/4"	1-3/8"	0.703"	1.19"	1.50"
