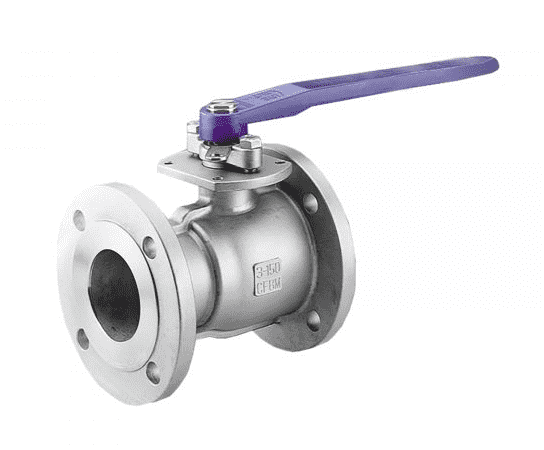

135IF0 by RuB Inc. | Regular Port Ball Valve | 2" Flange End x 2" Flange End | Manual/Actuatable | Stainless Steel

135IF0 by RuB Inc. | Regular Port Ball Valve | 2" Flange End x 2" Flange End | Manual/Actuatable | Stainless Steel

Save $38.91 Save $38.91
$350.15
$350.15 - $350.15
$350.15
$311.24
$311.24 - $311.24
$311.24

RuB Inc. - Stainless Steel Ball Valves - S.135 Series - Flange End x Flange End - Flanged Regular Port Manual/Actuatable
Specifications for Variant SKU: 135IF0 RuB Inc
Shape (Orientation): Straight
Ends Configuration: 2in 150# Flange, 2in 150# Flange, Some Ends Match
Material(s): Stainless Steel
Quality:
  • Anti-static device
  • Locking device
  • Long cycle life
  • Test standard: API 598
  • API 607 4th edition fire safe approval
  • Vacuum service to 29" Hg
Body:
  • ISO 5211 actuat or mounting pad
  • Body: ASTM A351 Gr. CF8M
Stem:
  • Blow-out proof stem design
  • Adjustable stem packing
Sealing:
  • ME-PTFE seal kits:
    • replaces PTFE, RPTFE and FPA
    • low deformation under load
    • low permeation
Threads:
  • ANSI B16.5, B16.10 and B16.34 full compliance
Handle:
  • Handle in ASTM A536 Gr. 65-45-12
  • WARNING: do not exceed reasonable temperature and/or electrical load
Working Pressure & Temperature:
  • General use: 750 PSI
  • 275 PSI for ASME 150 CF8M
  • Steam rating: 150 PSI WSP
  • -50°F/ +475°F
  • WARNING: freezing of the fluid in the installation may severely damage the valve
Approved by or in compliance with:
  • GOST-R (Russia)
  • NOTE: approvals apply to specific configurations/sizes only.
Part Number Size Dimensions (Inches)
A B E E1 d G H K T M N P S L H1 h
135IF0 2" 1.50" 7.0" 1.65" 1.02" 1.97" 0.06" 4.75 6.00" 0.62" 0.75" 4" 2.76" 0.67" 9.13 4.96 M8*P1.25
135MF0 3" 2.56" 8.0" 2.20" 1.44" 3.15" 0.06" 6.00 7.50" 0.75" 0.75" 4" 4.02" 0.87" 12.87 5.98 M10*P1.5
135NF0 4" 3.15" 9.0" 2.20" 1.44" 3.94" 0.06" 7.50 9.00" 0.94" 0.75" 8" 4.02" 0.87" 12.87 6.30 M10*P1.5
RuB Inc

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
