1369X6L by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector Long 90° Elbow | 3/8" Tube OD x 1/4" Male Pipe | Brass

1369X6L by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector Long 90° Elbow | 3/8" Tube OD x 1/4" Male Pipe | Brass

Name: 1369X6L by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector Long 90° Elbow | 3/8" Tube OD x 1/4" Male Pipe | Brass
Brand: Danfoss/Eaton
SKU: 1369X6L Danfoss
Price: 12.32 USD
Availability: InStock

$12.32 - $12.32

$12.32

$12.32 - $12.32

$12.32

Aeroquip® by Danfoss

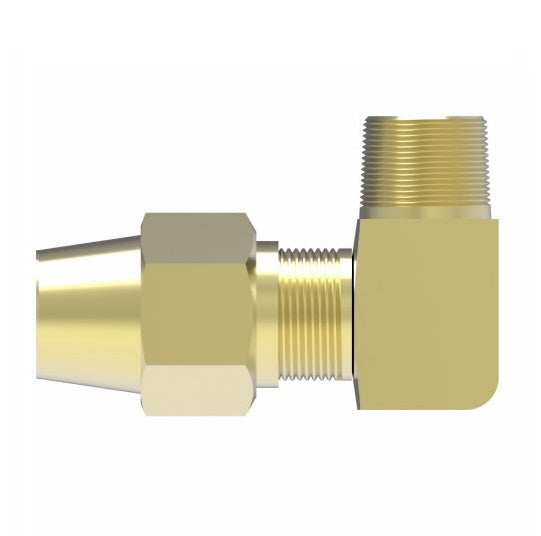

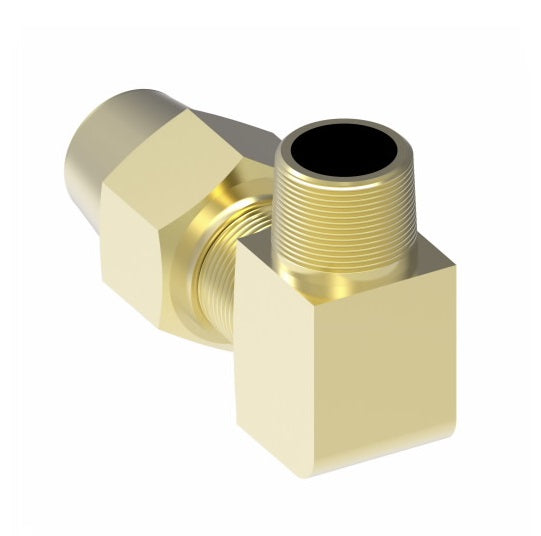

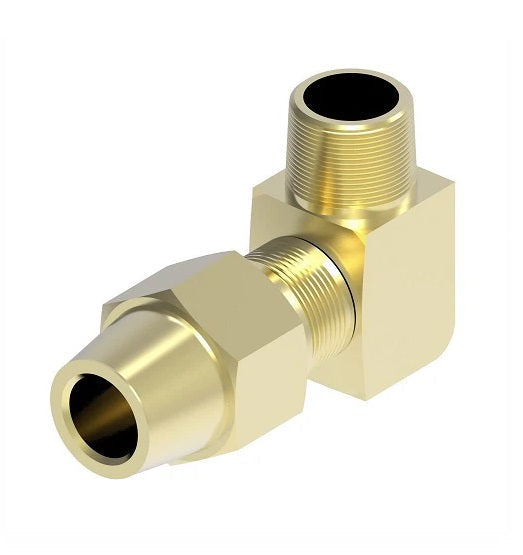

Air Brake Adapter for Copper Tubing - Male Connector (Long)

Specifications for Variant SKU: 1369X6L Danfoss
Shape (Orientation):	90 Degree
Material(s):	Brass

Applications:
Air brake systems.
Advantages:
Easy to assemble (no flaring). May be used with nylon tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut. Fair Vibration Resistance.
Used With:
Copper tubing in air brake systems.
Material:
CA360 Brass.
Pressure:
Maximum operating pressure of 150 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C) with copper tubing.
Conformance:
Meets specifications and standards of SAE and DOT.


Brass Part Number	Tube O.D.	Male Pipe Thread	D	M	N
1369X6L	3/8"	1/4"	0.312"	0.81"	1.44"
