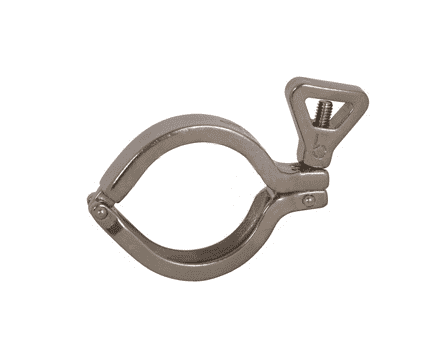

13ILH200 Dixon 304 Stainless Steel Sanitary Heavy Duty I-Line Clamp - 2" Tube OD

13ILH200 Dixon Valve 304 Stainless Steel Sanitary Heavy Duty I-Line Clamp - 2" Tube OD

Save $23.35 Save $23.35
$58.38
$58.38 - $58.38
$58.38
$35.03
$35.03 - $35.03
$35.03

Dixon Sanitary I-Line Clamps - Heavy Duty Clamps - 304 Stainless Steel

Specifications for Variant SKU: 13ILH200 Dixon
Material(s): 304 Stainless Steel
Maximum Clamp I.D.: 2
Note:
  • Wing nut tightened to 25 in. lbs. of torque
Safety Notes:
  • Tests are done hydrostatically with no water hammer or shock loads.
  • Please note the pressure ratings of the described unions may be above the recommended pipe line operating pressures.
Part Number Tube OD Service Pressure Rating Dimensions
Weight
(Lbs.)
@ 70 deg. F * @ 205 deg. F * A
13ILH100-150 1" - 1-1/2" 700 PSI 250 PSI 2.122" 0.6200
13ILH200 2" 450 PSI 250 PSI 2.654" 0.7800
13ILH250 2-1/2" 450 PSI 200 PSI 3.185" 1.2300
13ILH300 3" 350 PSI 150 PSI 3.717" 1.3240
13ILH400 4" 200 PSI 125 PSI 4.820" 1.6500
13ILH600 6" 150 PSI 100 PSI 7.689" 2.9200
13ILH800 8" 125 PSI 75 PSI 9.689" 3.6500

* Wing nut tightened to 25 in. lbs. of torque.
