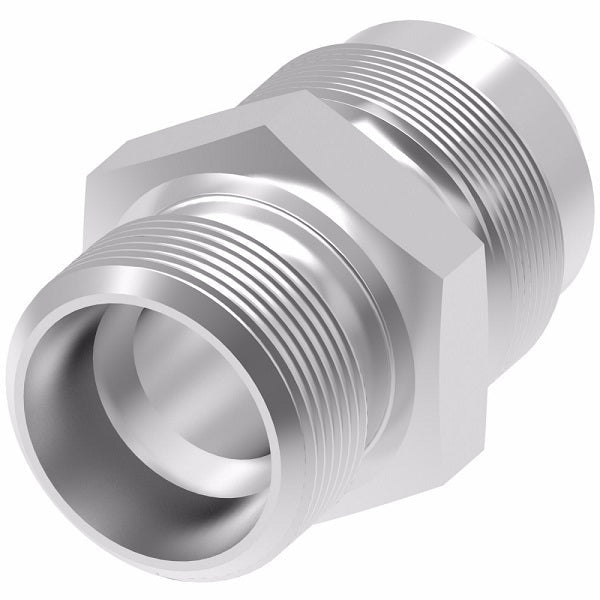

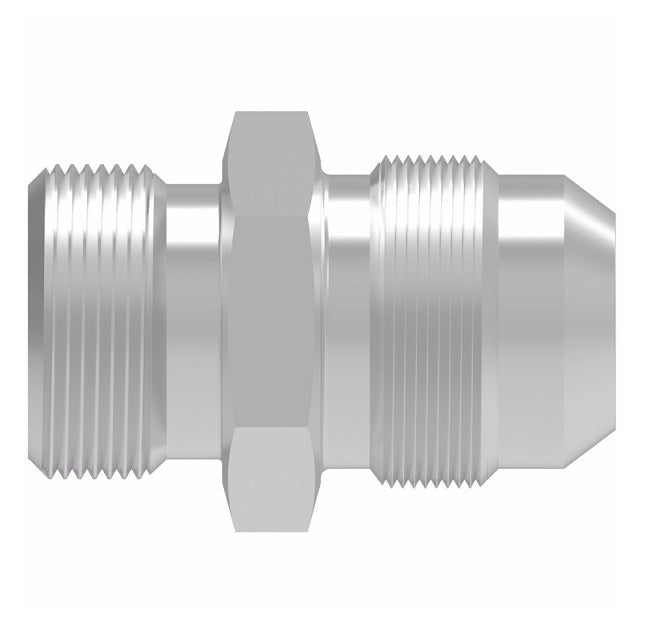

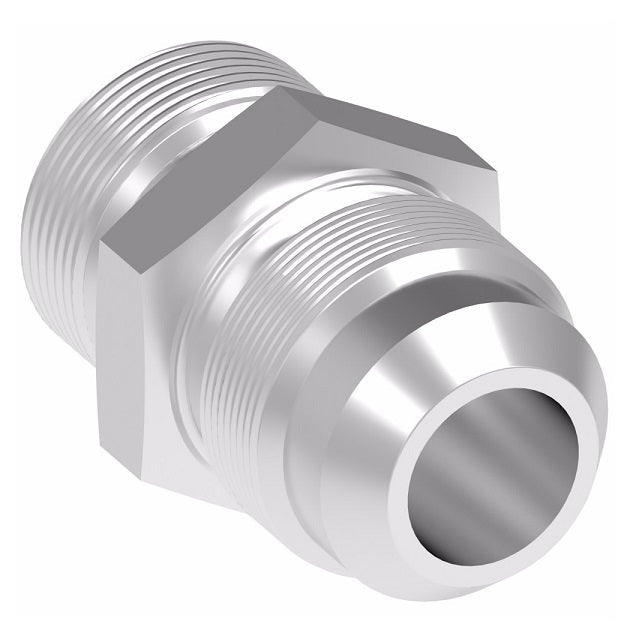

15.147-20-16 Aeroquip by Danfoss | Metric 24° (DIN 3901/3902 s.Rh)/37° Flare Straight Adapter | M30 Male Metric x -16 Male 37° JIC Flare | Steel

15.147-20-16 Aeroquip by Danfoss | Metric 24° (DIN 3901/3902 s.Rh)/37° Flare Straight Adapter | M30 Male Metric x -16 Male 37° JIC Flare | Steel

Name: 15.147-20-16 Aeroquip by Danfoss | Metric 24° (DIN 3901/3902 s.Rh)/37° Flare Straight Adapter | M30 Male Metric x -16 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 15.147-20-16 Danfoss
Price: 51.08 USD
Availability: InStock

$51.08 - $51.08

$51.08

$51.08 - $51.08

$51.08

Aeroquip® by Danfoss
Metric 24° (DIN 3901/3902 s.Rh)/37° JIC Flare Adapter
Male Metric x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 15.147-20-16 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	30mm Male Metric, 1in Male JIC
Material(s):	Steel


Steel Part Number	Tube O.D.	Thread T1	Thread T2	A	RØ
15.147-6-6	0.38"	M14 x 1.5	9/16-18	1.30"	0.24"
15.147-10-8	0.50"	M18 x 1.5	3/4-16	1.40"	0.39"
15.147-14-10	0.63"	M22 x 1.5	7/8-14	1.59"	0.55"
15.147-16-12	0.75"	M24 x 1.5	1-1/16-12	1.77"	0.63"
15.147-20-16	1.00"	M30 x 2.0	1-5/16-12	1.89"	0.79"
