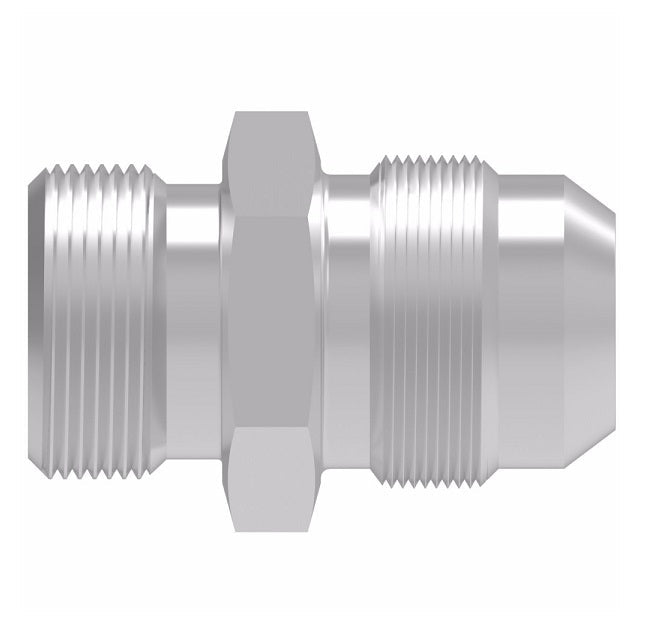

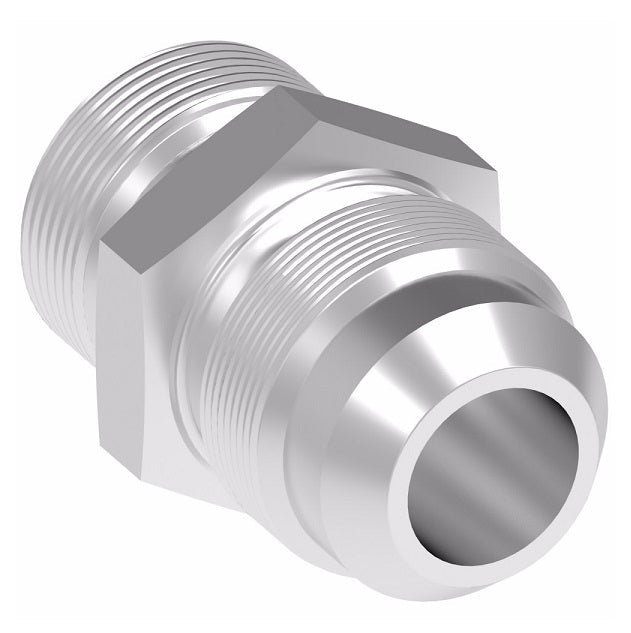

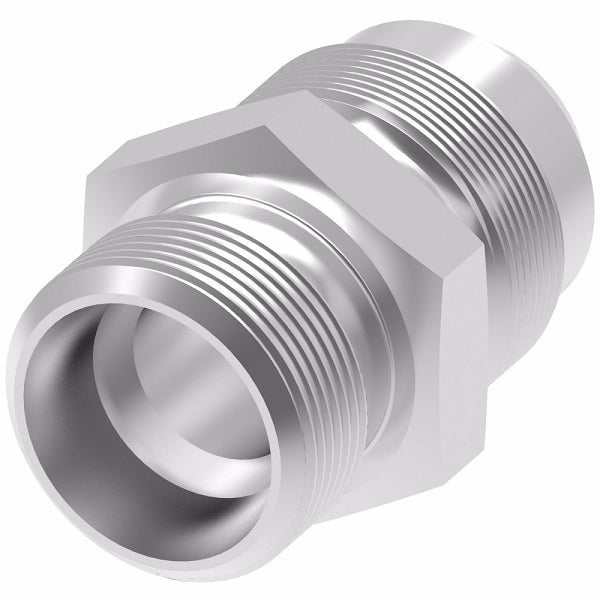

15.147-6-6 Aeroquip by Danfoss | Metric 24° (DIN 3901/3902 s.Rh)/37° Flare Straight Adapter | M14 Male Metric x -06 Male 37° JIC Flare | Steel

15.147-6-6 Aeroquip by Danfoss | Metric 24° (DIN 3901/3902 s.Rh)/37° Flare Straight Adapter | M14 Male Metric x -06 Male 37° JIC Flare | Steel

Name: 15.147-6-6 Aeroquip by Danfoss | Metric 24° (DIN 3901/3902 s.Rh)/37° Flare Straight Adapter | M14 Male Metric x -06 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 15.147-6-6 Danfoss
Price: 79.87 USD
Availability: InStock

$79.87 - $79.87

$79.87

$79.87 - $79.87

$79.87

Aeroquip® by Danfoss
Metric 24° (DIN 3901/3902 s.Rh)/37° JIC Flare Adapter
Male Metric x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 15.147-6-6 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	14mm Male Metric, 3/8in Male JIC
Material(s):	Steel


Steel Part Number	Tube O.D.	Thread T1	Thread T2	A	RØ
15.147-6-6	0.38"	M14 x 1.5	9/16-18	1.30"	0.24"
15.147-10-8	0.50"	M18 x 1.5	3/4-16	1.40"	0.39"
15.147-14-10	0.63"	M22 x 1.5	7/8-14	1.59"	0.55"
15.147-16-12	0.75"	M24 x 1.5	1-1/16-12	1.77"	0.63"
15.147-20-16	1.00"	M30 x 2.0	1-5/16-12	1.89"	0.79"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
