150 by Danfoss | Drain Cock | Angle Bib Drain | 90° Elbow | 1/8" Male NPTF | Brass

$15.88 - $15.88

$15.88

$15.88 - $15.88

$15.88

Aeroquip® by Danfoss

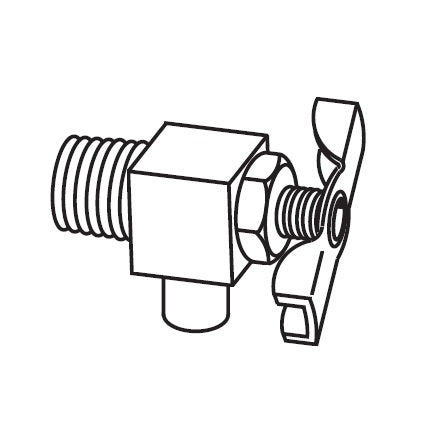

Drain Cock - Angle Bib Drain

Specifications for Variant SKU: 150 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1/8in Male NPTF
Material(s):	Brass

Applications:
Designed for automotive or industrial use.
Advantages:
The metal-to-metal seat requires only hand tightening to assure positive leak-proof performance.
Used With:
Copper, aluminum, steel, hose and plastic tubing where applicable.
Material:
Brass bodies/steel handles, except where noted
Pressure:
150 psi maximum (does not include hose or plastic tubing.)
Temperature Range:
-65°F to +250°F (-53°C to +121°C). (Refer to tubing temperature range.)
Conformance:
Not intended for natural gas, LPG, nuclear or aircraft applications, except as noted.


Brass Part Number	Male Pipe Thread	Square C	L	M	M1	N
150	1/8"	7/16"	1.12"	0.57"	0.95"	0.38"
120	1/4"	5/8"	1.76"	0.94"	1.50"	0.66"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
