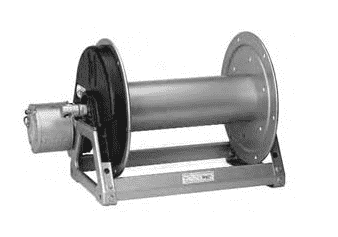

1500 Hannay Hydraulic Powered Rewind Reel (HD-1514-17-18)

HD-1514-17-18 by Hannay | 1500 Series | Hydraulic Powered Rewind Reel

$917.78 - $917.78
$917.78
$1,004.36
$1,004.36 - $1,004.36
$1,004.36



1500 Hydraulic Powered Rewind Reels To handle single 1/4" through 5/8" I.D. hose.
Specifications for Variant SKU: HD-1514-17-18 Hannay
Series: 1500 Series
Applications:
  • Lawn Care
  • Pest Control
  • Pressure Washing
  • Agriculture
  • Steam Cleaning
Features:
  • Lightweight compact reels designed for long lengths of hose in power rewind.
  • Direct crank rewind is permanently attached.
  • Chain and sprocket drive powered by a hydraulic motor.
  • Standard inlet 90 deg. ball bearing swivel joint 1/2" female NPT threads.
  • Standard outlet 1/2" female NPT threads.
  • Pressures to 3000 psi (207 bar)
  • Temperatures from +20 deg. F to +400 deg. F (-7 deg. C to +204 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 1/4" 3/8" 1/2" 5/8"
O.D. (in) 5/8" 3/4" 7/8" 1" A B E Crank E Power F Crank F Power X
HD-1514-17-18 175' length 125' length 75' length 50' length 42 lbs. 11" 6" 16.5" 19" 18.5" 16.5" 9.5"
HD-1520-17-18 350' length 275' length 175' length 125' length 44 lbs. 17" 12" 16.5" 19" 24.5" 22.5" 15.5"
HD-1526-17-18 500' length 400' length 300' length 200' length 46 lbs. 23" 18" 16.5" 19" 30.5" 28.5" 21.5"
HD-1530-17-18 N/A 500' length 375' length 275' length 48 lbs. 27" 22" 16.5" 19" 34.5" 32.5" 25.5"
HD-1536-17-18 N/A N/A 475' length 350' length 50 lbs. 33" 28" 16.5" 19" 40.5" 38.5" 31.5"
