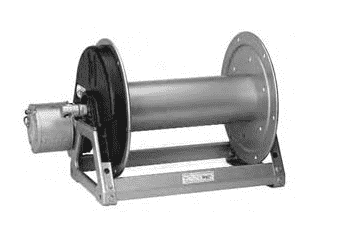

1514-17-18 by Hannay | #08-14 | 1500 Series | Manual Rewind Reel

Save $41.47 Save $41.47
Original price $368.14
Original price $368.14 - Original price $368.14
Original price $368.14
Current price $326.67
$326.67 - $326.67
Current price $326.67



1500 Manual Rewind Reels To handle single 1/4" through 5/8" I.D. hose.

Specifications for Variant SKU: 1514-17-18 Hannay
Series: 1500 Series
Applications:
  • Lawn Care
  • Pest Control
  • Pressure Washing
  • Agriculture
  • Steam Cleaning
Features:
  • Lightweight compact reels designed for long lengths of hose in manual rewind.
  • Direct crank rewind is permanently attached.
  • Manual reels include: cam-lock drag brake, spring actuated pin lock.
  • Standard inlet 90 deg. ball bearing swivel joint 1/2" female NPT threads.
  • Standard outlet 1/2" female NPT threads.
  • Pressures to 3000 psi (207 bar)
  • Temperatures from +20 deg. F to +400 deg. F (-7 deg. C to +204 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 1/4" 3/8" 1/2" 5/8"
O.D. (in) 5/8" 3/4" 7/8" 1" A B E Crank E Power F Crank F Power X
1514-17-18 175' length 125' length 75' length 50' length 27 lbs. 11" 6" 16.5" 19" 18.5" 16.5" 9.5"
1520-17-18 350' length 275' length 175' length 125' length 29 lbs. 17" 12" 16.5" 19" 24.5" 22.5" 15.5"
1526-17-18 500' length 400' length 300' length 200' length 31 lbs. 23" 18" 16.5" 19" 30.5" 28.5" 21.5"
1530-17-18 N/A 500' length 375' length 275' length 33 lbs. 27" 22" 16.5" 19" 34.5" 32.5" 25.5"
1536-17-18 N/A N/A 475' length 350' length 35 lbs. 33" 28" 16.5" 19" 40.5" 38.5" 31.5"
Hannay Reels

Hannay Reels

Hannay Reels is the leading manufacturer of durable hose and cable reels for both OEM and aftermarket applications, offering thousands of standard models along with a wide range of custom design capabilities. Hannay’s superior manufacturing techniques, consistent quality, outstanding service and unmatched value result in the most dependable, best-engineered reels in the business.
