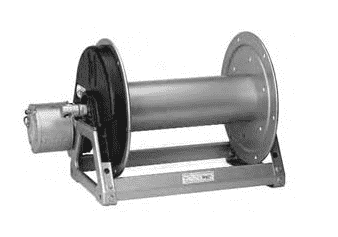

1536-17-18 by Hannay | #08-36 | 1500 Series | Manual Rewind Reel

$326.67



1500 Manual Rewind Reels To handle single 1/4" through 5/8" I.D. hose.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 1536-17-18 Hannay
Series: 1500 Series
Applications:
  • Lawn Care
  • Pest Control
  • Pressure Washing
  • Agriculture
  • Steam Cleaning
Features:
  • Lightweight compact reels designed for long lengths of hose in manual rewind.
  • Direct crank rewind is permanently attached.
  • Manual reels include: cam-lock drag brake, spring actuated pin lock.
  • Standard inlet 90 deg. ball bearing swivel joint 1/2" female NPT threads.
  • Standard outlet 1/2" female NPT threads.
  • Pressures to 3000 psi (207 bar)
  • Temperatures from +20 deg. F to +400 deg. F (-7 deg. C to +204 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 1/4" 3/8" 1/2" 5/8"
O.D. (in) 5/8" 3/4" 7/8" 1" A B E Crank E Power F Crank F Power X
1514-17-18 175' length 125' length 75' length 50' length 27 lbs. 11" 6" 16.5" 19" 18.5" 16.5" 9.5"
1520-17-18 350' length 275' length 175' length 125' length 29 lbs. 17" 12" 16.5" 19" 24.5" 22.5" 15.5"
1526-17-18 500' length 400' length 300' length 200' length 31 lbs. 23" 18" 16.5" 19" 30.5" 28.5" 21.5"
1530-17-18 N/A 500' length 375' length 275' length 33 lbs. 27" 22" 16.5" 19" 34.5" 32.5" 25.5"
1536-17-18 N/A N/A 475' length 350' length 35 lbs. 33" 28" 16.5" 19" 40.5" 38.5" 31.5"
