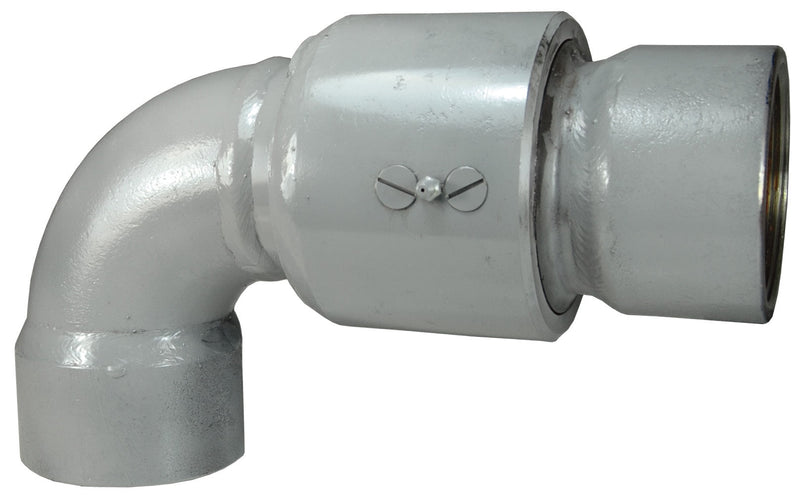

15030FXFAL00000 by Dixon Valve | Swivel Joint | Single Plane | Style 30 | 90° Elbow | 1-1/2" Size | Female NPT x Female NPT | Aluminum

Save $16.19

$214.38

$214.38 - $214.38

$214.38

$198.19

$198.19 - $198.19

$198.19

Dixon Valve
Swivel Joint | Single Plane | Style 30 | 90° Elbow | Female NPT x Female NPT

Used wherever a leak-proof swivel connection is needed in pipelines or in combination with hoses to eliminate hose twisting.

Full 360° rotational movement.

Quantity

Specifications for Variant SKU: 15030FXFAL00000 Dixon
Series:	Style 30
Shape (Orientation):	90 Degree
Ends Configuration:	1-1/2in Female NPT, 1-1/2in Female NPT, Some Ends Match
Material(s):	Aluminum, Carbon Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Swivel

Applications:
Industries range from petroleum, petrochemical, refining, mining, distilling, paint, farm irrigation and fertilizing, wastewater treatment plants and food and beverage process equipment. Dixon™'s swivel joints are found in blending plants, drum filling applications, fluid and dry bulk transfer, vacuum trucks, oil and gas trucks and water trucks. Larger swivels can be found in the steel industry, marine bulk transfer and many more.
Features:
O-ring pressure seal ensures a leak-proof seal and smooth rotation with lower torque. Full 360° rotational movement. Wide spacing between dual ball bearing raceways ensures greater load bearing capacity. Precision-machined design ensures alignment and years of trouble-free service. Hydrostatic testing is performed on all swivels before shipment. O-ring dust seal protects the ball races and seals chamber from outside elements.
Safety Notes:
The Swivel should be packed such that the surfaces coming in contact with the fluid being handled are compatible with that fluid. In case of the use of the swivel in submerged service, this would include the dust seals and ball bearings. Dixon always recommends the use of the stainless steel ball bearings when building a swivel for submerged service, since should the standard carbon steel ball bearings rust together, they make it possible to dissemble the swivel and may affect operation. Lubrication should be performed periodically, depending on service and operating conditions. Twice yearly is normally sufficient.
Literature:
Dixon O-Ring vs V-Ring Swivel Joint Guide.PDF

Aluminum Part Number	Malleable Iron Part Number	Size	Dust Seal	Ball Bearings	Grease	Style	Retainer	Pressure Seal
15030FXFAL00000	15030FXFMI00000	1-1/2"	Nitrile Rubber	Carbon Steel	Standard	O-Ring	No Retainers	Nitrile Rubber
230FXFAL00000	230FXFMI00000	2"	Nitrile Rubber	Carbon Steel	Standard	O-Ring	No Retainers	Nitrile Rubber
330FXFAL00000	330FXFMI00000	3"	Nitrile Rubber	Carbon Steel	Standard	O-Ring	No Retainers	Nitrile Rubber
430FXFAL00000	-	4"	Nitrile Rubber	Carbon Steel	Standard	O-Ring	No Retainers	Nitrile Rubber
