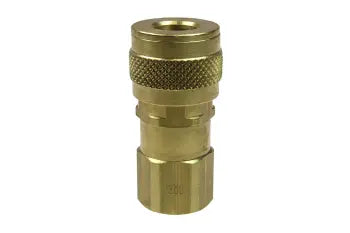

150U by Coilhose | Coilflow™ Automatic Universal Coupler (U Series) | 1/4" Female NPT Thread | Straight | Brass

150U by Coilhose | Coilflow™ Automatic Universal Coupler (U Series) | 1/4" Female NPT Thread | Straight | Brass

Save $1.50 Save $1.50
$13.47
$13.47 - $13.47
$13.47
$11.97
$11.97 - $11.97
$11.97
Coilhose Pneumatics - Coilflow™ Couplers & Connectors - Automatic - Universal Couplers ("U" Series)
Specifications for Variant SKU: 150U Coilhose
Brand: Coilflow
Shape (Orientation): Straight
Material(s): Brass
Overview:
  • Coilhose Pneumatics Automatic Universal Couplers are designed for use where there are connectors of different interchanges in use on the same application or in the same plant. These couplers feature an all brass body and sleeve construction, four hardened steel locking balls, stainless steel valve and sleeve springs, and nitrile (Buna-N) seals and o-rings.
Features:
  • These units automatically connect by pushing the coupler and connector together. Perfect for plants with multiple interchanges. Connects to Industrial, Automotive, and ARO interchanges.
  • Automatically Connects
  • Buna N Seals & O-Rings
  • Stainless Steel Valve
  • Made in USA
Body Size: 1/4" Type: "U" Series
Interchange: Industrial (Type 15)
Automotive (Type 16)
ARO (Type 14)		 Style: Automatic
Locking Device: 4 Hardened Steel Locking Balls Internal Valve: Stainless Steel
Body Material: Brass Sleeve Material: Brass
Maximum Input Pressure: 150 PSI Temperature Range: -40°F to 250°F
Seals: Nitrile (Buna N) Connecting Force at 60 PSI......13 lbs.
at 80 PSI......17 lbs.
at 100 PSI.....21 lbs.

Model Thread Size / Barb
150U 1/4" FPT
152U 1/4" MPT
