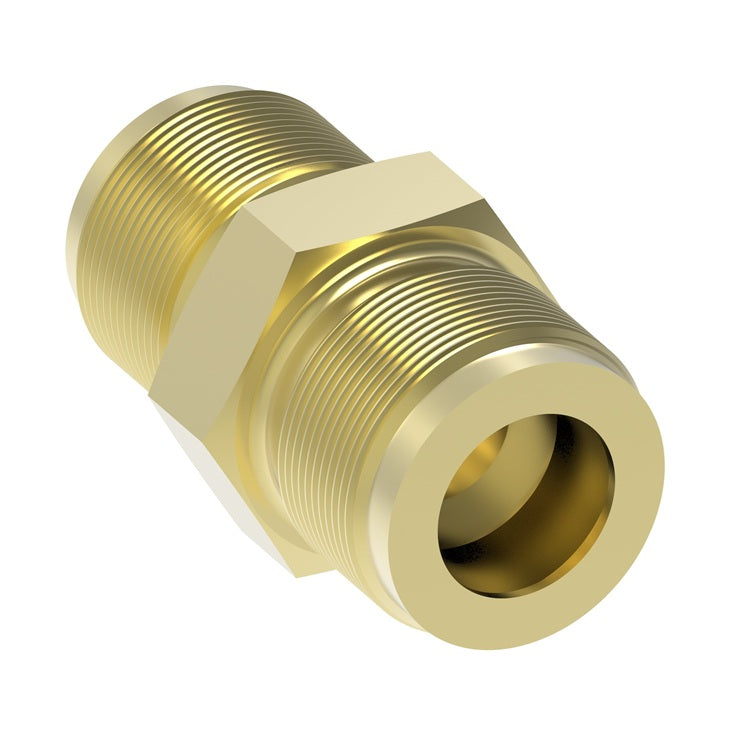

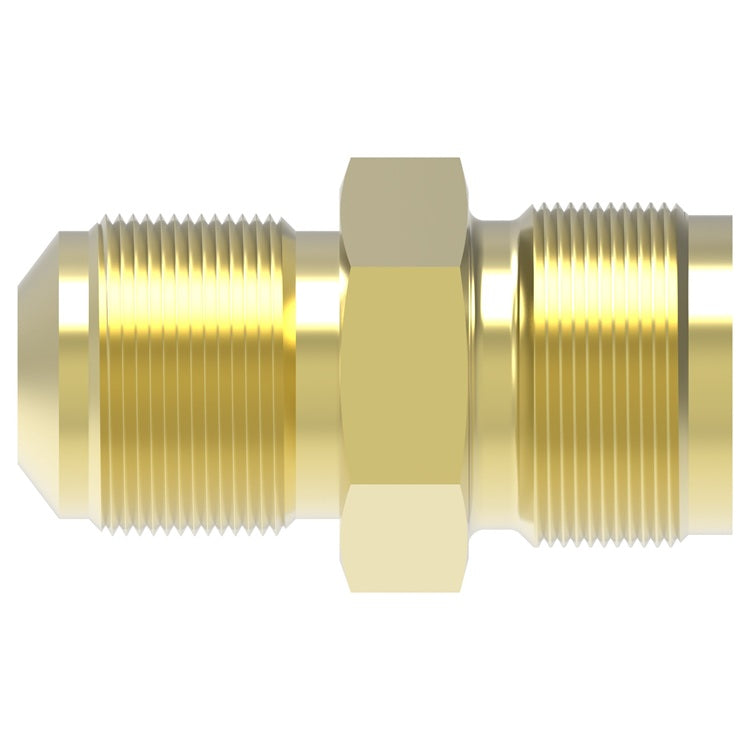

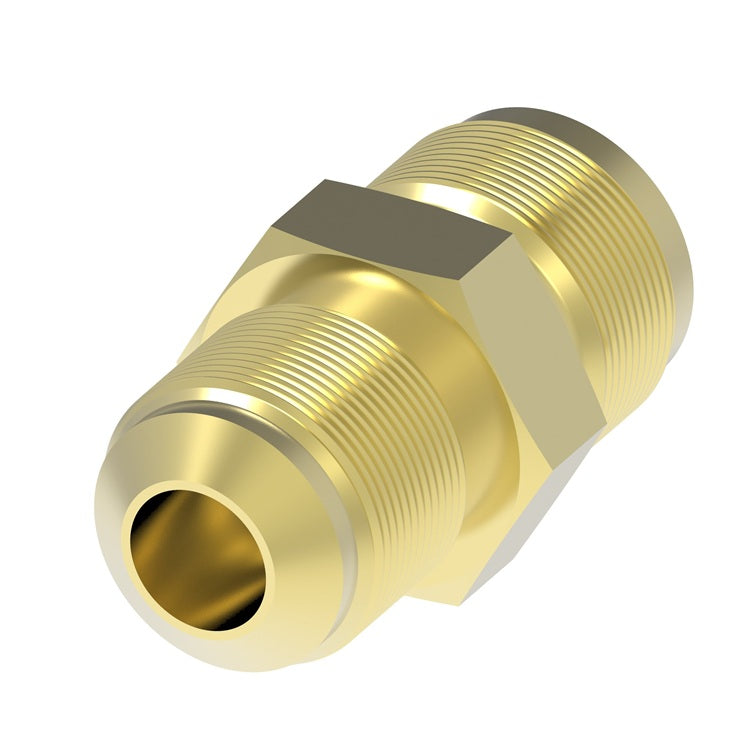

1521 Aeroquip by Danfoss | AC type Adapter | 1/4" Tube Size x 1/4" 45 SAE Tube Size | Brass
1521 Aeroquip by Danfoss | AC type Adapter | 1/4" Tube Size x 1/4" 45 SAE Tube Size | Brass
1521 Aeroquip by Danfoss | AC type Adapter | 1/4" Tube Size x 1/4" 45 SAE Tube Size | Brass
1521 Aeroquip by Danfoss | AC type Adapter | 1/4" Tube Size x 1/4" 45 SAE Tube Size | Brass

1521 Aeroquip by Danfoss | AC type Adapter | 1/4" Tube Size x 1/4" 45 SAE Tube Size | Brass

$12.06 - $12.06
$12.06
$12.06 - $12.06
$12.06

SAE 45° Flare

AC Type Adapter - Brass
Specifications for Variant SKU: 1521 Danfoss
Shape (Orientation): Straight
Material(s): Brass
Typical Applications:
  • LP and natural gas
  • Flammable liquids (special order)
  • Instrumentation
  • Refrigeration
  • Power steering
  • Hydraulic
  • Pneumatic systems
Advantages: Low cost and reusability, long or short nut. Good resistance to vibration.
Conformance: Listed by Underwriter's Laboratories (available on special order) for flammable liquids, refrigeration and gas. Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Pressure: Working pressure up to 2000 psi depending on tube size. Will withstand burst pressure of Mstandard tubing - up to 5000 psi with bundy-weld (double flared) and 3500 psi with copper tubing, depending on size.
Vibration: Good resistance - use long nut when greater vibration resistance is required.
Temperature Range: -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Material: CA360 Brass
Used with: Copper,brass,aluminum and steel hydraulic tubing that can be flared. Material Compatibility
Tube Size SAE Tube Size Part No.
1/4 1/4 1521

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
