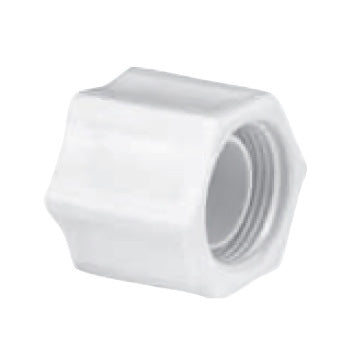

1561X5 by Danfoss | Compression Nut | Ferrule Nut with Integral Sleeve | 5/6" Tube OD | Nylon

1561X5 by Danfoss | Compression Nut | Ferrule Nut with Integral Sleeve | 5/16" Tube OD | Nylon

$1.80 - $1.80
$1.80
$1.80 - $1.80
$1.80

Aeroquip® by Danfoss
Molded Compression Tube - Compression Nut
Ferrule Nut with Integral Sleeve
Specifications for Variant SKU: 1561X5 Danfoss
Shape (Orientation): No Orientation
Ends Configuration: 5/16in Tube Compression
Material(s): Nylon
Compatible with the following Series: PT200 Series  |   PT240 Series  |   TP160 Series
Features/Benefits:
  • Leak-free performance.
  • High integrity in both mechanical and acoustical vibrations.
  • Easy assembly - no special tools or tube preparation necessary.
  • Reliability in side-loaded applications allows for compact plumbing.
  • Connectors come fully assembled - for your convenience.
  • Very low resistance to media flow resulting from material and internal surfaces.
  • No metal parts to corrode or present a safety hazard with aggressive chemicals.
  • ISO 9001 Certified.
Materials:
  • Nylon Characteristics:
    • Good resistance to organic solvents, oils, and gasoline.
    • Excellent impact resistance.
    • Tolerant to repeated steam for wash down and longtime weathering.
    • F.D.A. and N.S.F. listed.
    • Operating temperatures: -40°F to 200°F (-40°C to 93°C) - not to exceed temperature specification of tubing.
  • Polypropylene Characteristics:
    • Good chemical and corrosion resistance.
    • Opaque.
    • 20% glass filled.
    • N.S.F. listed.
    • Operating temperatures: -30°F to 200°F (-34°C to 93°C) - not to exceed temperature specification of tubing.
Styles:
  • Ferrule Nut (integral nut and sleeve for soft tubing to 50 PSI*).
    • Features ferrule and nut molded as a single part, eliminating the need for a two-piece assembly.
  • Gripper Nut with separate plastic sleeve (for sure-grip with plastic tubing up to 220 PSI*).
    • For higher pressure applications.
Operating Temperatures:
  • Nylon:
    • -40°F to 200°F (-40°C to 93°C) - not to exceed temperature specification of tubing.
  • Polypropylene:
    • -30°F to 200°F (-34°C to 93°C) - not to exceed temperature specification of tubing.
Compatible Tubing:
  • For use with PT200, PT240, and TP160 plastic tubing.
  • Tube inserts are recommended for optimal performance with PT200 tubing.

* Operating temperatures of Eaton connectors are regulated by ambient and fluid temperatures, type of fluid being carried, tubing type and conditions of mechanical abuse. Pressures in excess of above specifications in all connector sizes should be tested by the customer in the particular application.
Tube OD 1/8"
(.125")		 1/4"
(.250")		 5/16"
(.312")		 3/8"
(.375")		 1/2"
(.500")		 5/8"
(.625")		 3/4"
(.750")
Tube Thread Size 5/16-24 7/16-20 1/2-20 5/8-20 3/4-20 7/8-20 1-1/16-20
Nylon
Part Number		 Tube O.D. Hex C L D
1561X4 1/4" 5/8" 0.63" 0.26"
1561X5 5/16" 11/16" 0.69" 0.32"
1561X8 1/2" 15/16" 0.88" 0.51"
