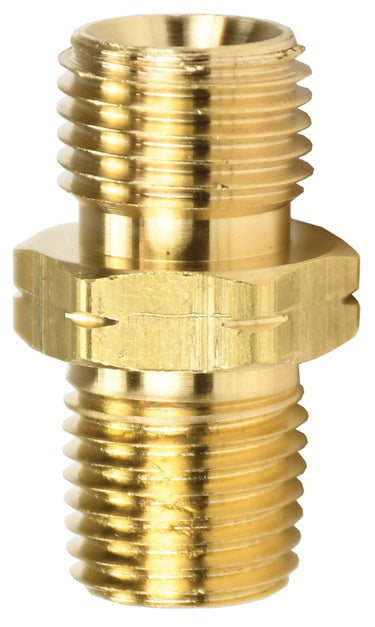

1580906C by Dixon Valve | Welding Oxy-Acetylene Adapter | Left-Hand Thread | 9/16" Male UNF x 3/8" Male NPTF | Brass

1580906C by Dixon Valve | Welding Oxy-Acetylene Adapter | Left-Hand Thread | 9/16" Male UNF x 3/8" Male NPTF | Brass

Save $0.16 Save $0.16
$2.76
$2.76 - $2.76
$2.76
$2.60
$2.60 - $2.60
$2.60

Dixon Valve
Welding Oxy-Acetylene Adapter

Use with Oxy-Acetylene Hose.

For Low-pressure welding applications, connecting your tank to pressure regulators or torches.

For use with acetylene, butane, fuel gases, LP gas, natural gas, oxygen, and propane.
Specifications for Variant SKU: 1580906C Dixon
Series: 158 Series
Shape (Orientation): Straight
Material(s): Brass
Use:
  • It is recommended that hose assemblies be fabricated using hose clamps or crimped ferrules in conjunction with hose barbs.
Compatible Hoses:
  • All Grade R and Grade RM single or twin-line oxygen (green) acetylene (red) industrial welding hoses.
  • Parker 7110 and 7126 or equivalent.
Approvals:
  • Meets Compressed Gas Association (CGA) connection Nos.
Specifications:
  • 200 PSI (1400 kPa) 72°F (22°C) maximum working pressure with 4:1 safety factor for fittings, but a 15 PSI maximum must be observed on the acetylene side.
  • Operating temperatures: -40°F to 160°F (-40°F to 71°C) at 150 PSI maximum.
Material:
  • Brass: Alloy 360.
Safety Notes:
  • Use 1" long crimp ferrules only for optimum hose engagement.
  • Use only acetylene as a fuel gas.
  • Use only a proper striker for ignition.
  • A thread sealant is recommended for tapered pipe thread connections with 156 and 158-Series adapters.
Left-Hand Thread x NPTF
Part
Number		 Previous
Part Number		 CGA
Number		 Left UNF Thread Male NPTF Hex
1580902C 158-0902 023 9/16"-18 1/8" 11/16"
1580904C 158-0904 023 9/16"-18 1/4" 11/16"
1580906C 158-0906 023 9/16"-18 3/8" 11/16"
Right-Hand Thread x NPTF
Part
Number		 Previous
Part Number		 CGA
Number		 Right UNF Thread Male NPTF Hex
1560902C 156-0902 022 9/16"-18 1/8" 11/16"
1560904C 156-0904 022 9/16"-18 1/4" 11/16"
1560906C 156-0906 022 9/16"-18 3/8" 11/16"
